9036 Half Surface Standard and Decorative Hinges

  • • Half surface strap hinge with mortised pintle leaf for mounting to inside of frame, pintle pin located at edge of opening.
  •
  • • Offers better security alternative than a 9035 Style hinge.
  •
  • • Use hinge back plates when bolting through non-reinforced doors.

1) Type of Bearing

Ball Bearing Image
 Ball Bearing: Manual or power operation with an expected usage in excess of 20 cycles per day.
Disc Bearing Image
 Disc Bearing: Manual operation only with an expected usage of a maximum of 20 cycles per day.

2) Door Dimensions

  • a. Wdith of the door in feet (ft):    {Example: 3'-4" = 3.34 ft}
  • b. Height of the door in feet (ft):
  • c. Weight of the door in pounds (lbs.):

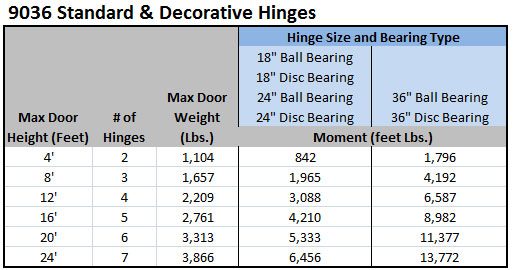

3) Calculate the "moment" value of the hinge set for your application

(Width of Door in feet) X (Weight of Door in pounds) = Calculated "moment" value.
