#948 Super-Steel Frame Wood Panel Custom Doors

These rugged and sturdy doors offer the best of both worlds, a steel frame for structural stability and the look of wood. The #948 style door construction is adaptable to all types of applications ranging from smaller commercial and industrial to large airplane hangar openings.

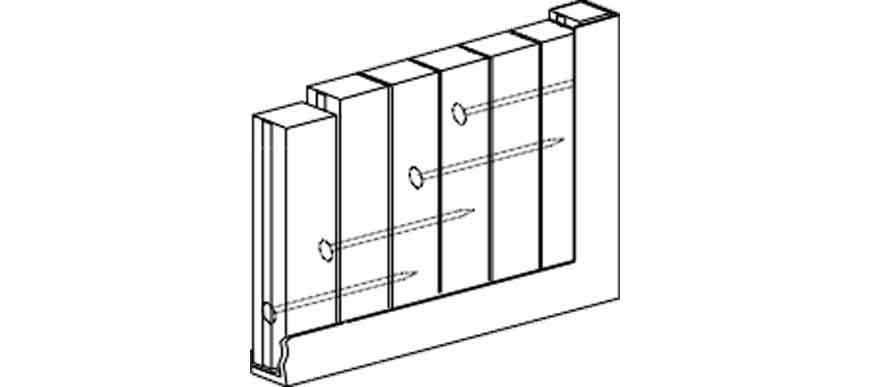

Crown #948 Super-Steel Wood Panel doors are constructed of clear grade tongue and groove strips that are screwed and glued together into a panel. These panels are then fit into a heavy-duty welded steel angle frame. For doors over 4'-0" in width, additional "T" bars are welded bother vertically and horizontally inside the frame to preserve rigidity. All wood faces for exterior doors are treated with a high quality preservative to reduce moisture penetration. This treatment in combination with the staggered screw pattern and heavy steel frame construction help prevent shrinkage as well as cupping and swelling that is common in solid wood doors.

  • • Doors over 4' in width have additional "T" bars welded both vertically and horizontally inside the frame to maintain rigidity.
  • • Pass doors and sash are available. Glass not included.
  • • Door panels are constructed from Vertical Grain Douglas Fir Stain Grade. Panels can be constructed from other wood species upon request.
