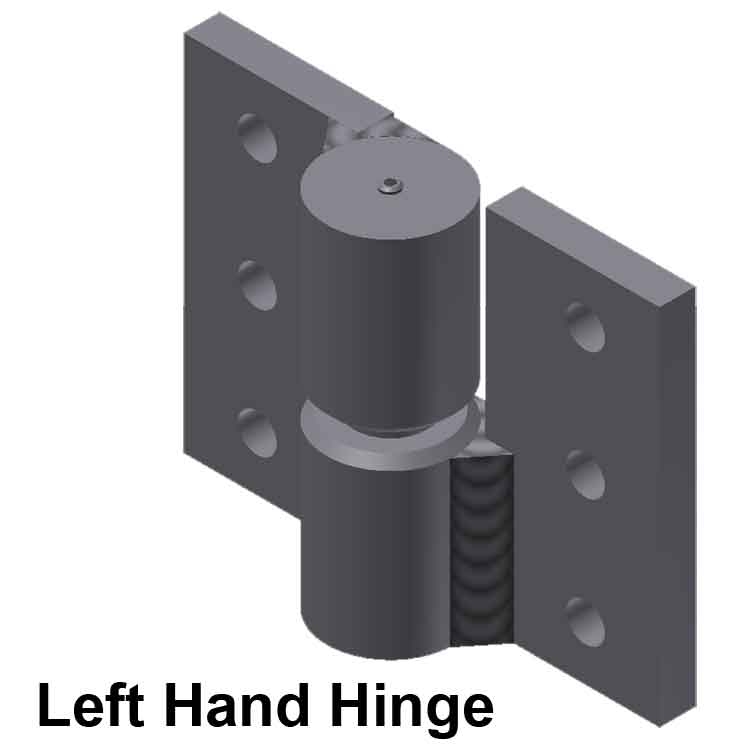

Precision Engineered High Capacity Full Surface

US$1,041.27
EA (1)

Ordering Notes

All ZINC or STAINLESS STEEL hinge orders CAN NOT be cancelled once placed and are NOT returnable.

Item made to order.
4-5 week lead time for Prime Painted Finish.

6-8 week lead time for Clear Zinc US2C Finish.

3-4 week lead time for Stainless Steel 2B Mill Finish and Stainless Steel US32D Finish.

Polished Chrome Plated (US26) and Satin Chrome Plated (US26D) special order finishes.


The above lead times can vary, please check with a sales representative to confirm

Documents & Downloads

Technical Data

Technical Data

CBW Hinge Capacity Chart

For weld on applications, the minimum fillet weld size shall be used per the above chart. Welds shall be full length on (3) sides of each leaf. Weld interpass temperature at the hinge barrel shall not exceed 225ºF.


Install Tips

Install Tips

The CBW hinges will function at the rated capacities as listed in the chart under the Technical Data tab providing the following specifications are met.

1) The hinges are installed without inducing "hinge bind".
2) A minimum of (2 ea) hinges are used per door.
3) Door weight (Thrust Load) shall never exceed the thrust capacity of one hinge.
4) Compliance with bolt specification.
5) Minimum thread engagement into reinforcing member shall be equal to the bolt diameter.
6) For weld on applications, the minimum fillet weld size shall be used per the chart under the Technical Data tab.  Welds shall be full length on (3) sides of each leaf.  Weld interpass temperature at the hinge barrel shall not exceed 225ºF.
7) For certain high frequency applications, adequate load distribution between hinges maybe necessary to obtain the highest margin of safety with respect to load-life on bearings.
8) Maximum (+) adjustment is 1/8" over nominal.

During installation, we recommend pre-loading the hinges to remove any clearances that may develop from a tolerance "stack-up".
