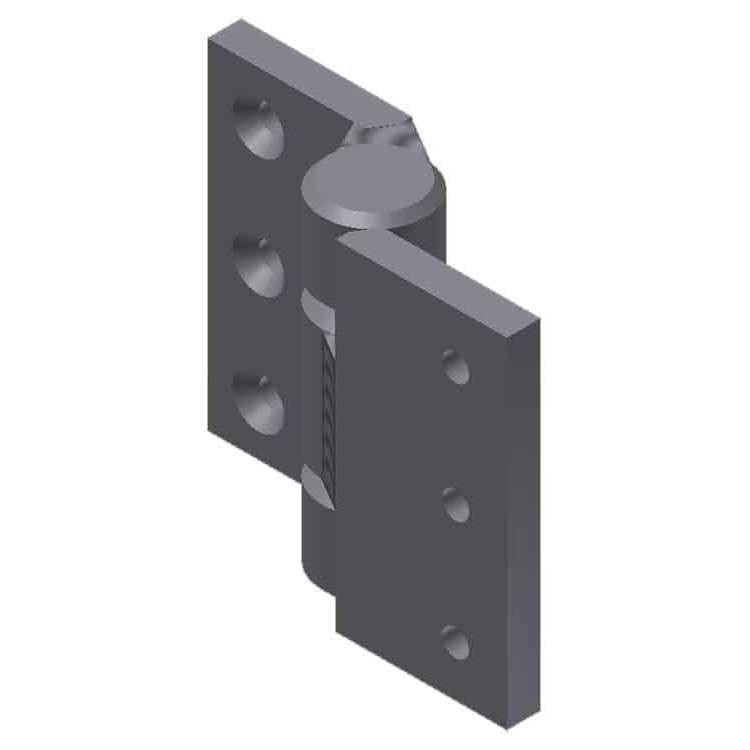

#8500 Series Precision Engineered High Capacity Half Mortise Hinge (8506/8511) Zoom

#8500 Series Precision Engineered High Capacity Half Mortise Hinge (8506/8511)

US$349.20
Primer Grey
EA (1)
Clear All

All STAINLESS STEEL hinge orders CAN NOT be cancelled once placed and are NOT returnable.

  • • Prime Painted, No Holes: NON STOCK. Can be (3-4) weeks to manufacture.
  • • Prime Painted w/ Holes: (1) additional week to manufacture.  Can be (4-5) weeks to manufacture total
  • • Special Finishes: 304 and 316 Stainless Steel available upon request.  Custom made to order (4-5) weeks to manufacture.


The above lead times can vary, please check with a sales representative to confirm

Documents & Downloads

Documents & Downloads

pdf DocumentCBI Half Mortise Hinge Drawings

pdf DocumentDesign Assistance Document, Engineering Calculations: Radial Capacity

pdf DocumentCBI Precision Hinge Drawings / Hardware Cut Sheet

pdf DocumentDeclaration of Hinge Capacity

Technical Data

Technical Data

Hinge Model #
Door Weight (Thrust Capacity)
Radial Capacity
Mounting Specification
Bolt Torque
Torque to Operate Door
CBI8505 through CBI8508
800 lbs.
320 lbs.
1/2" Hex Head Bolt, Grade 5 (Fu 120 kpsi)
625 lbf-in
50 lbf-in
3/8" Flat Socket Head Cap Screw (Fu 170 kpsi)
320 lbf-in
CBI8510 through CBI8513
2,000 lbs.
800 lbs.
1/2" Hex Head Bolt, Grade 5 (Fu 120 kpsi)
625 lbf-in

5 lbf-in
3/8" Flat Socket Head Cap Screw (Fu 170 kpsi)
320 lbf-in

Features:
• Self-lubricating, maintenance free, radial and thrust bearings which have a PV rating as high as 28,000 psi x fpm.
• A precision, ground stainless steel, maximum security hinge pin is welded in place.
• For detention grade applications, these hinges meet or exceed ASTM F1758 Grade 1 and are FBOP approved.
• The 8505-8508 hinges uses a non-metallic self-lubricating bearing, making it more durable in weather.
