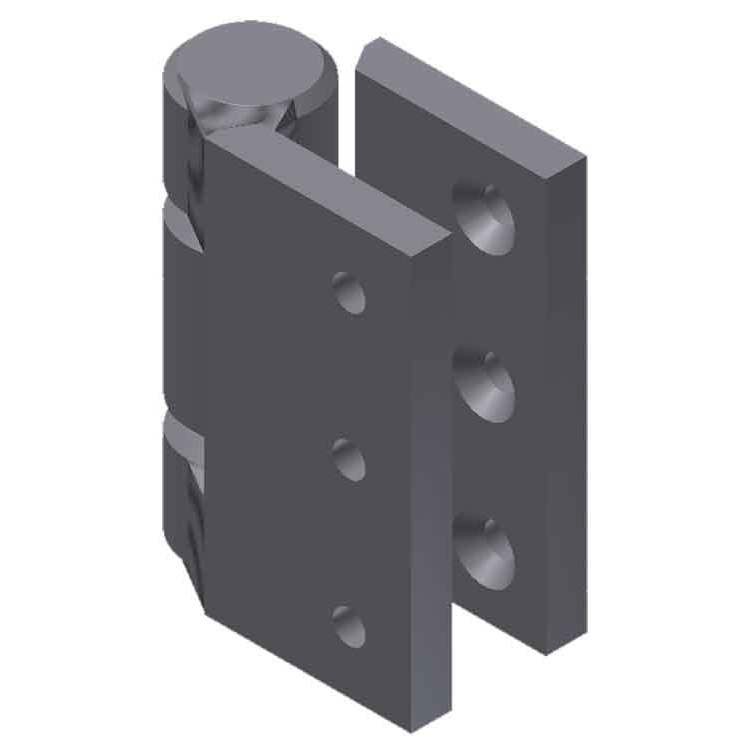

Design Assistance Document, Engineering Calculations: Radial CapacityTechnical Data
Technical Data
|
Hinge Model #
|
Door Weight (Thrust Capacity)
|
Radial Capacity
|
Mounting Specification
|
Bolt Torque
|
Torque to Operate Door
|
|---|---|---|---|---|---|
|
CBI8505 through CBI8508
|
800 lbs.
|
320 lbs.
|
1/2" Hex Head Bolt, Grade 5 (Fu 120 kpsi)
|
625 lbf-in
|
50 lbf-in
|
|
3/8" Flat Socket Head Cap Screw (Fu 170 kpsi)
|
320 lbf-in
|
||||
|
CBI8510 through CBI8513
|
2,000 lbs.
|
800 lbs.
|
1/2" Hex Head Bolt, Grade 5 (Fu 120 kpsi)
|
625 lbf-in
|
5 lbf-in |
|
3/8" Flat Socket Head Cap Screw (Fu 170 kpsi)
|
320 lbf-in
|
Features:
• Self-lubricating, maintenance free, radial and thrust bearings which have a PV rating as high as 28,000 psi x fpm.
• A precision, ground stainless steel, maximum security hinge pin is welded in place.
• For detention grade applications, these hinges meet or exceed ASTM F1758 Grade 1 and are FBOP approved.
• The 8505-8508 hinges uses a non-metallic self-lubricating bearing, making it more durable in weather.
