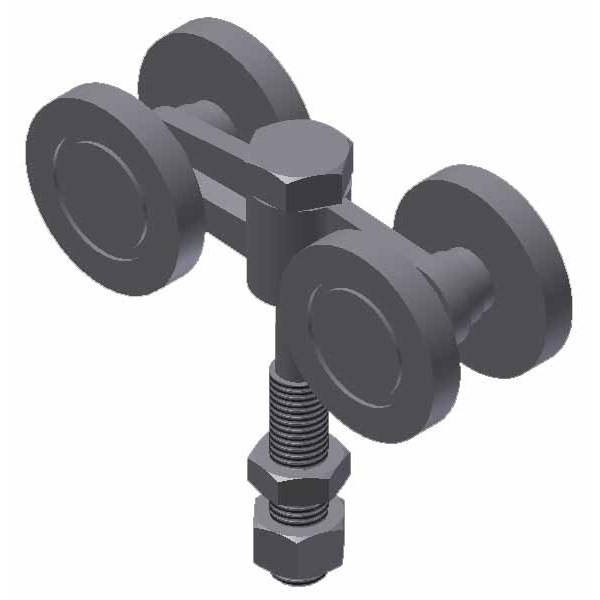

Truck, Ball Bearing, 3/4" Pend.-Zinc

Item: 10-1BE

US$471.19
PR (1)

Sold as a pair (2 ea.)

Features

Features

For electrically operated sliding doors. One pair of trucks per door. Door Weight not to exceed 800 lbs.
Sold as a pair (2 ea.)

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Purpose:
NOTE: Only (1) one pair of trucks are to be used per door regardless of the size of the door.  Attaching more than two trucks on a single door can create a fulcrum or "teeter totter" effect causing uneven wear to the trucks and track.

A truck is a wheel assembly with an adjustable bolt called a pendant bolt. The pendant bolt of the truck assembly can be directly attached to the top of a metal door without the use of a top plate, provided sufficient reinforcing has been installed in the top of the metal door. When used with a top plate, a truck can be attached to the top of a wood or other types of doors.

Trucks that use an apron assembly to attach to a door are called hangers or trolleys. The apron component of a hanger assembly comprises of two metal plates that wrap around the top of the door.  Bolts are secured perpendicularly through the door and into these plates.

Function:
For metal doors with sufficient reinforcing in the top of the door to support the door's own weight.

Fasteners Included: (2 ea.) 3/4"-10 Hex Nut & Jamb Nut.
