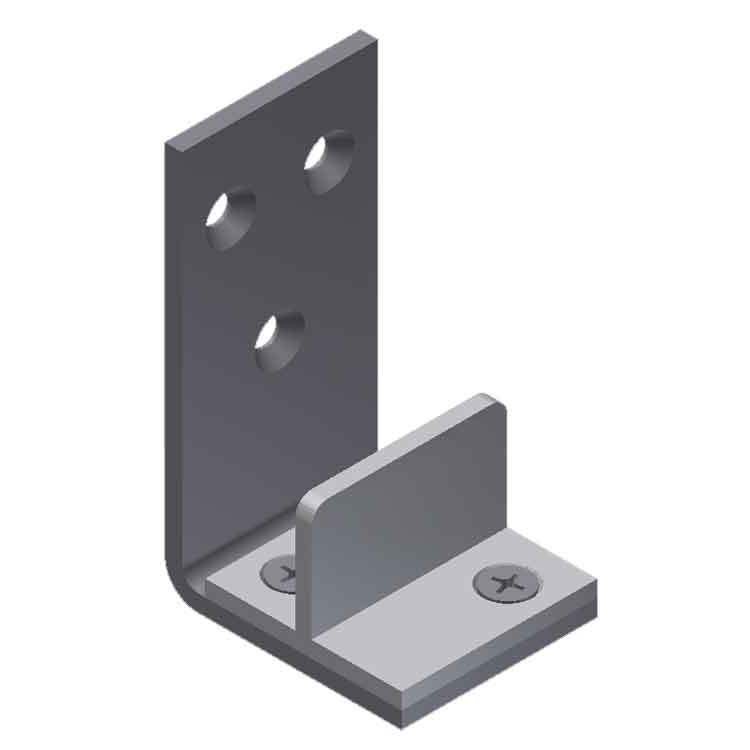

Side Mounted Concealed "T" Guide x ( ")-Alum.

Item: CTG160X1

US$41.30
EA (1)

Indicate distance from face of bracket to CL of T-Guide per drawing.

Place this information in COMMENT OR INSTRUCTIONS section.

Features

Features

For wall mounted applications with light weight interior wood doors.  Minimum Door Thickness: 1-3/8".

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Purpose:
For light weight interior wood doors that are less than 3'-6" in width and are no less than 1-3/8" thick, the ctg160x1 is a wall-mounted guide that is positioned under the door where the trailing edge of the door laps the jamb.

Function:
The door must be prepared with a 1/4" x 1" mortised continuous slot that runs the center of the door thickness for the entire width of the door.

No Fasteners Included.

Material: 1/8" Aluminum.
