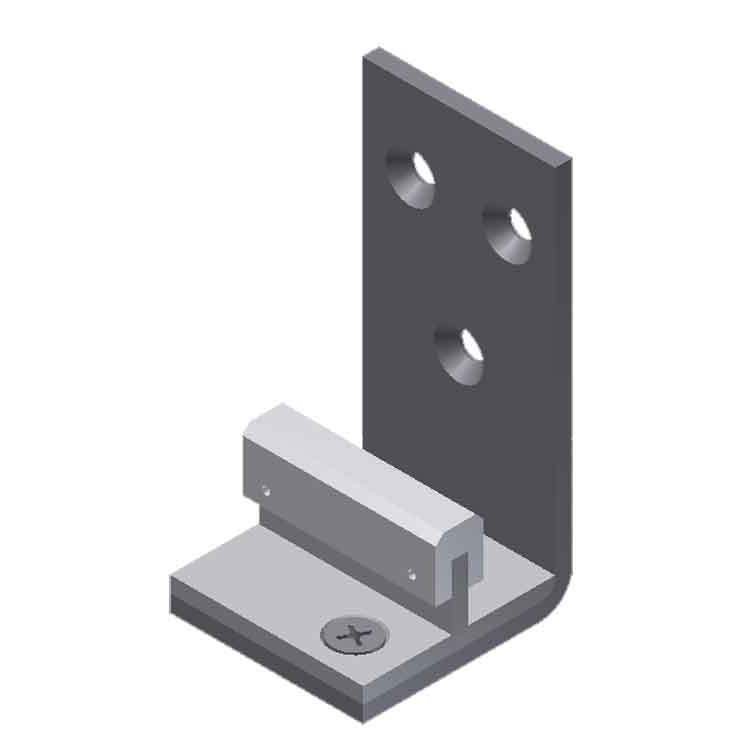

Side Mounted HD Concealed "T" Guide x ( ")

Item: CTG160HDX1

US$48.55
EA (1)

Indicate distance from face of bracket to CL of T-Guide per drawing.

Place this information in COMMENT OR INSTRUCTIONS section.

Features

Features

For wall mounted applications with medium duty wood doors.  Minimum Door Thickness: 1".

Documents & Downloads

Technical Data

Technical Data

Purpose:
The door must be prepared with a 3/4" x 3/4" mortised continuous slot that runs the center of the door thickness for the entire width of the door.  In this slot the #CRSC6 concealed guide channel is installed and the stationary #CTG160HDx1 guide slides inside of this guide channel. For medium sized wood doors that are no less than 1" thick, the #CTG160HDx1 is a wall-mounted guide that is positioned under the door where the trailing edge of the door laps the jamb.

Function:
The door must be prepared with a 3/4" x 3/4" mortised continuous slot that runs the center of the door thickness for the entire width of the door.  In this slot the #CRSC6 concealed guide channel is installed and the stationary #CTG160HDx1 guide slides inside of this guide channel.

No Fasteners Included.

Material: 1/8" Aluminum with UHMW white industrial plastic bearing surface.
