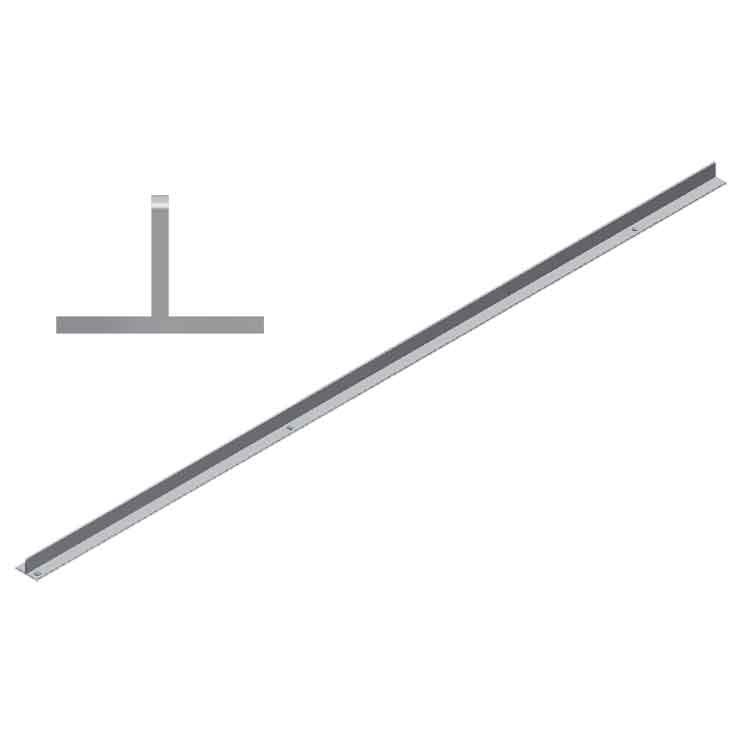

Concealed "T" Guide x ( ") Lng-Alum.

For light weight interior wood doors. Minimum Door Thickness: 1-3/8".

• .pdf Drawing

Purpose:
For light weight interior wood doors that are no less than 1-3/8" thick, the #CTG160FT is a continuous floor-mounted guide.

*Please specify the length of the guide required. Mounting holes will be staggered at 12" centers typically. For shorter pieces mounting holes will be spaced accordingly.

Function:
The door must be prepared with a 1/4" x 1" mortised continuous slot that runs the center of the door thickness for the entire width of the door.

Fasteners Included: #10-16 x 3/4" Flat Head Phillips Sheet Metal Screws, Zinc.

Material: 1/8" Aluminum.
