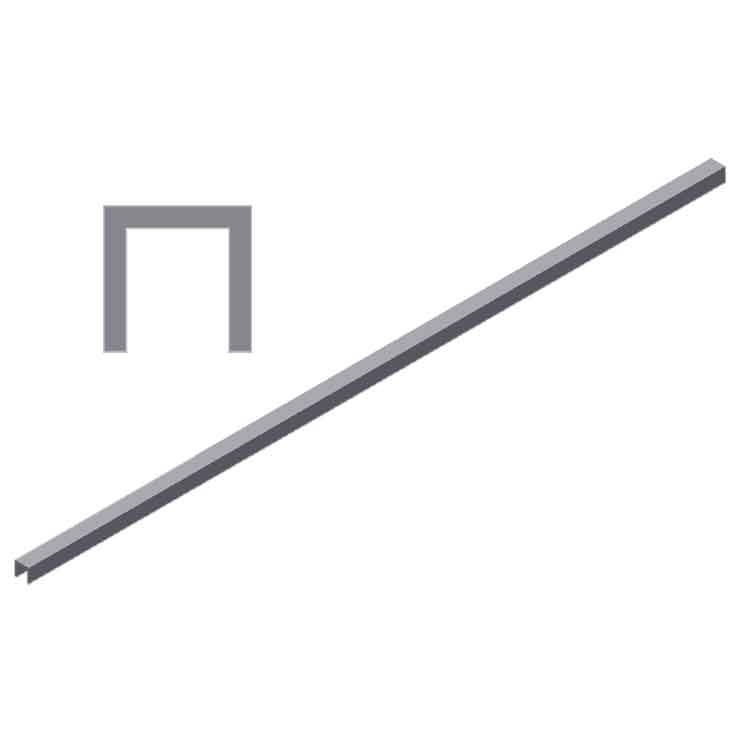

Concealed Guide Channel

US$45.44
EA (1)

• For a specific length, indicate in the "Comments or Instructions" field.

• If material is over 8'-6" Long, it can not be shipped via UPS and will be shipped via Truck/Freight

Features

Features

Minimum Door Thickness: 1"

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Purpose:
Acts as an aluminum bottom guide channel that typically mortises into the bottom of a door. Mortise 3/4" x 3/4". Fasten into place using #10 Flat Head Screws @ 12" Centers. Drilling and countersink for #10 fasteners is done in field by others. Holes can be supplied with material upon request.

No Fasteners Included.

Material: 3/4" x 3/4" Aluminum Channel, Mill Finish (Non-Anodized).
