Minimum Door Thickness: 2-3/4"
Documents & Downloads
Documents & Downloads
Technical Data
Technical Data
Purpose:

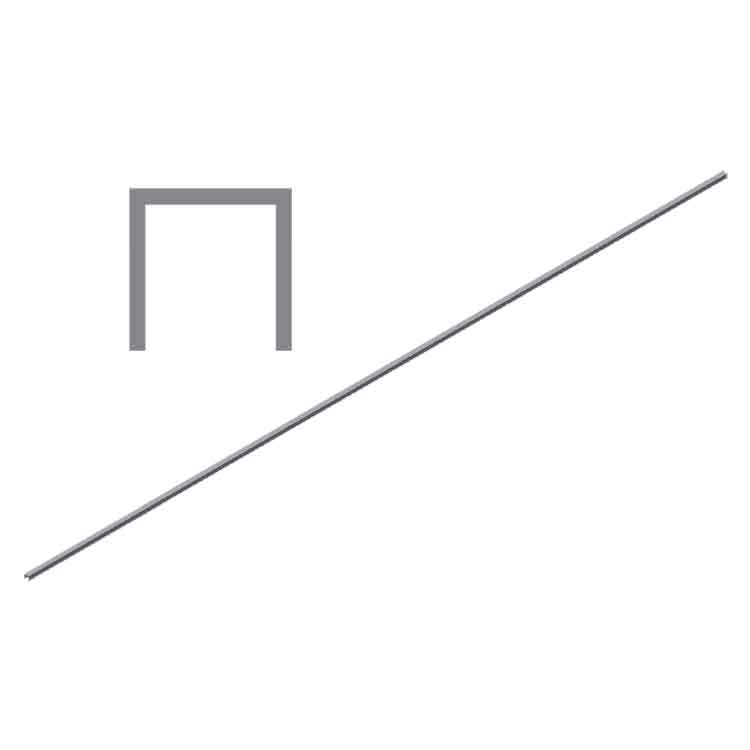

Minimum door thickness is 2-3/4". Acts as an aluminum bottom guide channel that typically mortises into the bottom of a door. Mortise 2" x 2". Fasten into place using 1/4 Flat Head Screws @ 24" Centers. Drilling and countersink for 1/4" fasteners is done in field by others. Holes can be supplied with material upon request.
No Fasteners Included.
Material: 2" x 2" Aluminum Channel, Mill Finish (Non-Anodized).
