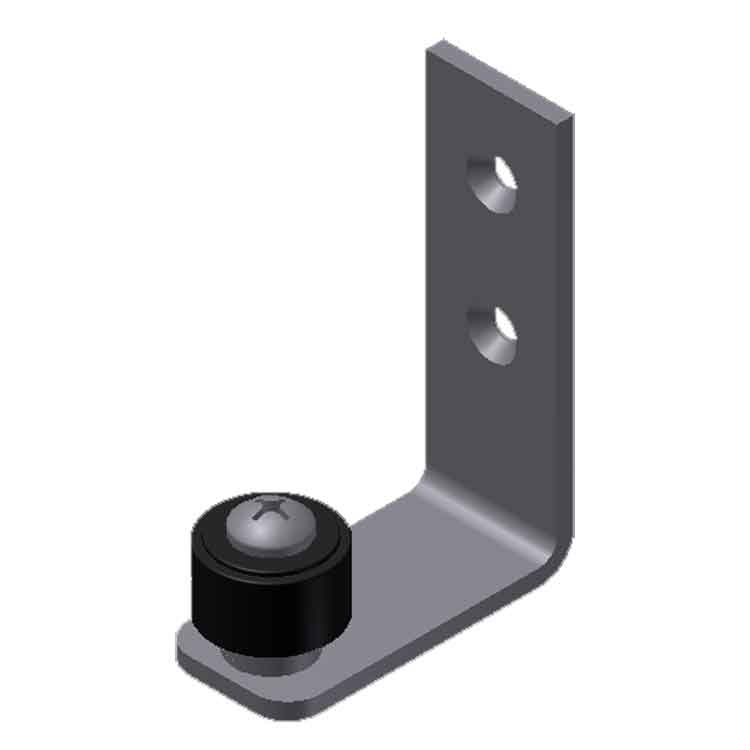

Wall Mounted Concealed Stay SINGLE Roller (INDICATE)

US$29.38
EA (1)

Indicate distance from face of bracket to CL of Guide Roller Wheel per drawing.

Place this information in COMMENT OR INSTRUCTIONS section.

Features

Features

Minimum Door Thickness: 1-3/4", if used with #CRSC14 Bottom Guide Channel.

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Purpose:
Wall mounted stay roller.
• For doors less than 1-3/4" thick, this roller can roll on the face of the door.
• For doors 1-3/4" or more in thickness use this roller with the #CRSC14 concealed stay roller channel. Ideal for single slide, bi-parting, and by-passing sliding doors where the roller is to be concealed.  Bottom of door must be prepared with a 1-1/4" x 1-1/4" continuous slot to accommodate the concealed stay roller channel.

For wet or near the ocean applications use the CRS14x11-S: All stainless steel wheel & body.

Function:
A stationary wall mounted stay roller that is mounted at the edge of the opening in the direction the door slides, where the door overlaps the opening.  The door with the #CRSC14 concealed stay roller channel slides over the stay roller. This stay roller can also roll on the face of thinner doors.

No Fasteners Included.
