Purpose:

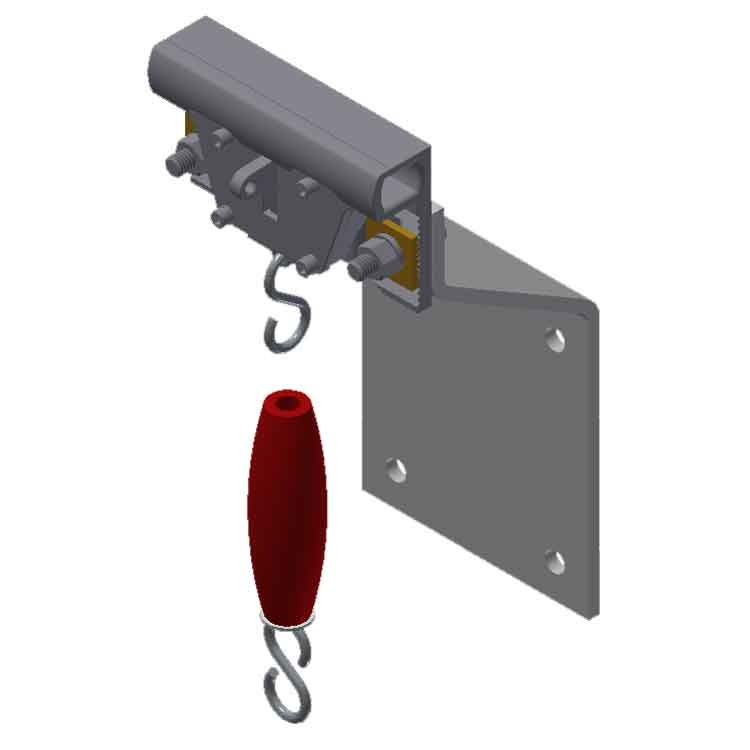

For single or bi-parting sliding door and gate applications. This is the manual chain disconnect/release. When the red handle is pulled down it pulls against the spring loaded latch, disengaging the latch from the #52 drive chain. This allows the door/gate to slide independent from the chain.
Included: 10'-0" of Sash Chain. Additional sash chain can be ordered.
No 3/8" Fasteners Included.
.pdf G996-R1 1265 1266 Installation, Operation, Maintenance & Parts Manual
