9035 Full Surface Standard and Decorative Hinges

  • Doors Clear Opening: Full surface strap hinge with an offset pintle. Allows the pintle to be mounted on frame of the opening or set back on the face of the wall to allow the doors to clear the doorway when opened.
  •
  • • Use hinge back plates when bolting through non-reinforced doors.

1) Type of Bearing

Ball Bearing Image
 Ball Bearing: Manual or power operation with an expected usage in excess of 20 cycles per day.
Disc Bearing Image
 Disc Bearing: Manual operation only with an expected usage of a maximum of 20 cycles per day.

2) Door Dimensions

  • a. Wdith of the door in feet (ft):    {Example: 3'-4" = 3.34 ft}
  • b. Height of the door in feet (ft):
  • c. Weight of the door in pounds (lbs.):

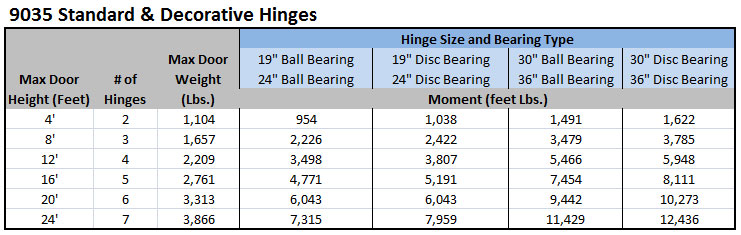

3) Calculate the "moment" value of the hinge set for your application

(Width of Door in feet) X (Weight of Door in pounds) = Calculated "moment" value.

4 Results
