Function:

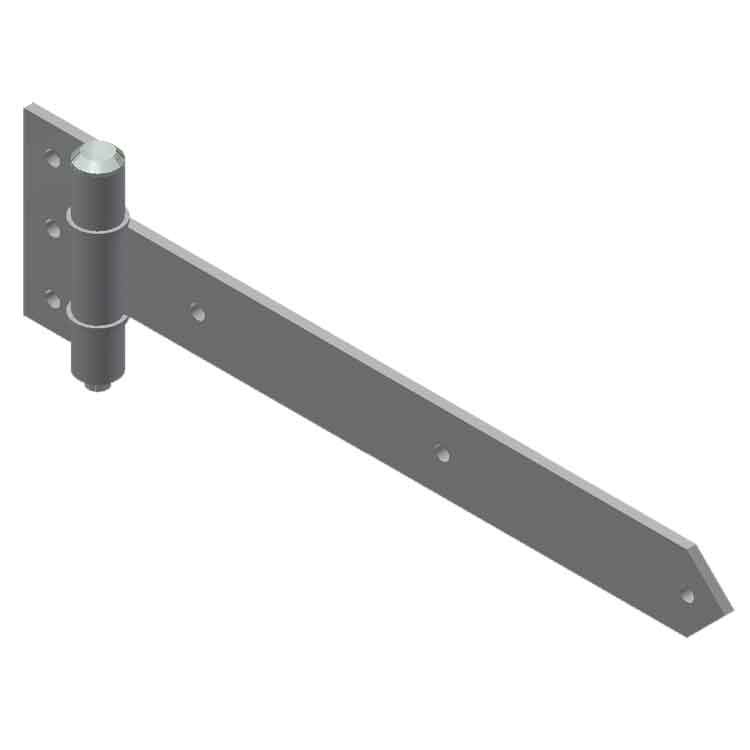

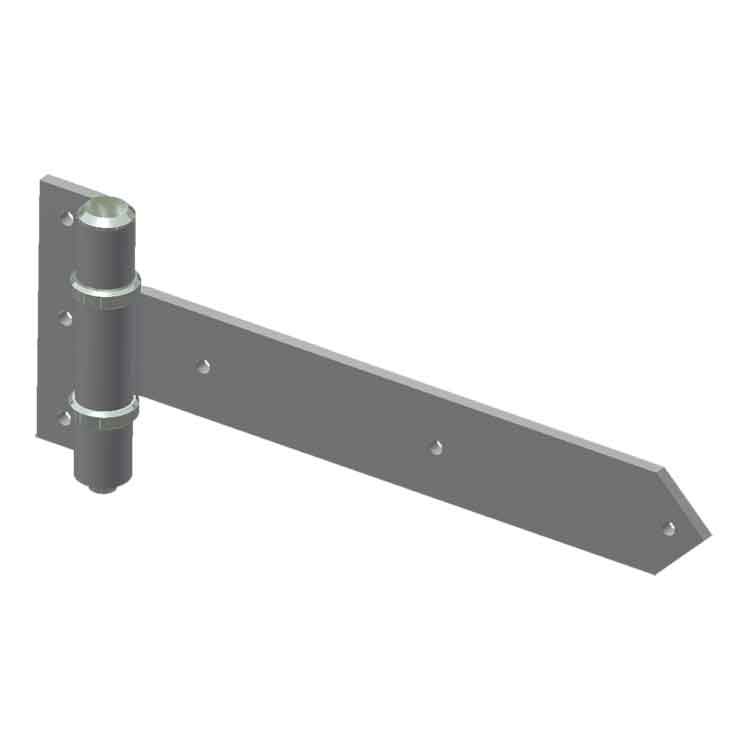

Full surface strap hinge with pintle pin located at the edge of the opening; narrow pintle plate for attachment to steel frames.
No Fasteners Included.
Finish Notes:Available in powder coat black or tan finish as well as hot dipped galvanized. Pintle pin and bearings are zinc plated.
