Flat Track Hanger, Standard (800 lbs Capacity)

Sold as a pair (2 ea.)

102H .pdf Drawings

Function:
Industrial sized hangers for a door up to 800 lbs.

Hanger Type:

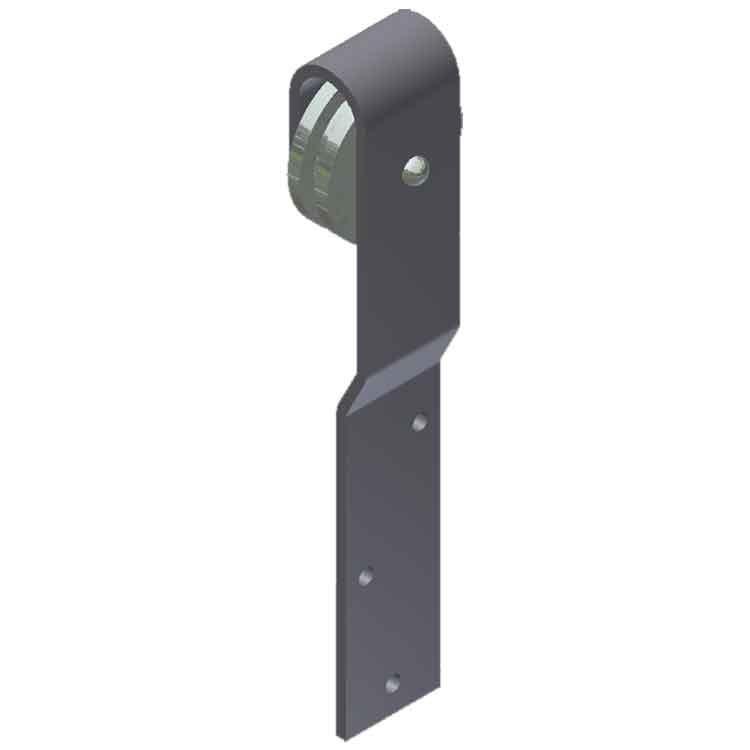

• 0102.00075: This hanger has an offset and is for thinner doors up to 1-5/8" thick.

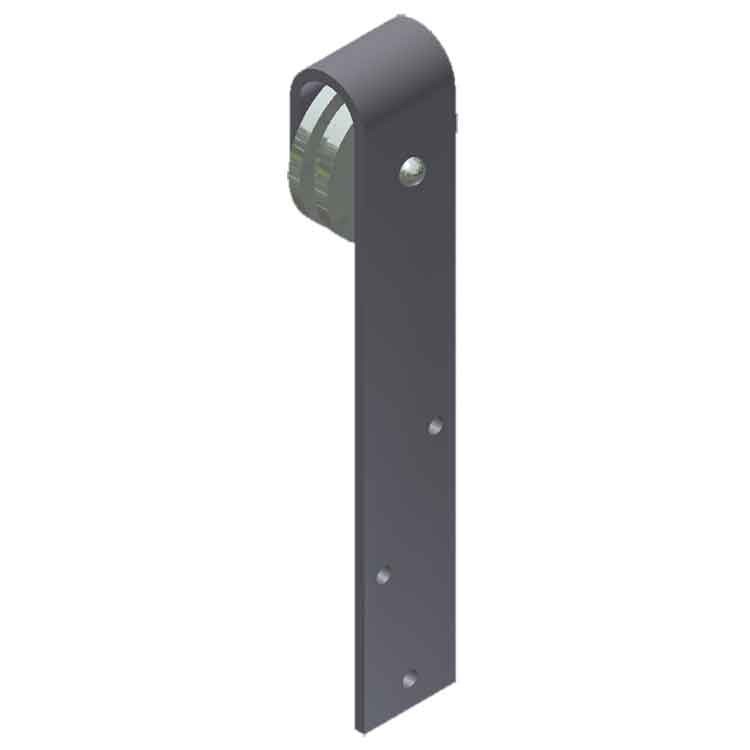

• 0102.00076: This hanger is flat and is for thicker doors up to 2-1/2" thick.

Bearing Type:

• Roller Bearing: For smooth rolling applications were the door is approaching the capacity of the hanger. The roller bearing reduces the force required to move the door and is ideal for industrial applications.
• Bushed Bearing: For quiet applications such as residential or interior. The wheel is bushed with a bronze bushing instead of a roller bearing so there is no "clicking" sounds of the roller bearing.

No Fasteners Included to attach Hanger to Door.
