Features
Features
Maximum Bracket Spacing 24" on Centers
Documents & Downloads
Documents & Downloads
.pdf 8x18 Drawing
8x18.stp fileTechnical Data
Technical Data
Purpose:

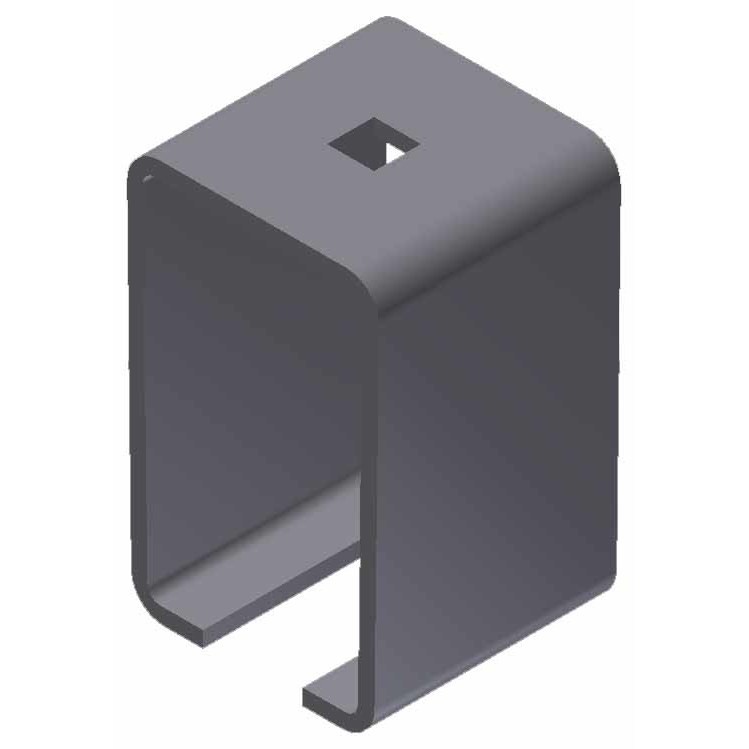

Required to mount the track. The Standard Product Warranty requires the use of Track Brackets for all applications. Gives the track stability to prevent it from spreading apart.
- Brackets spaced on a maximum of 24" centers.
- Use an end blind in combination with bracket to produce an end bracket.
Function:
For mounting to the underside of a opening header or support beam.
