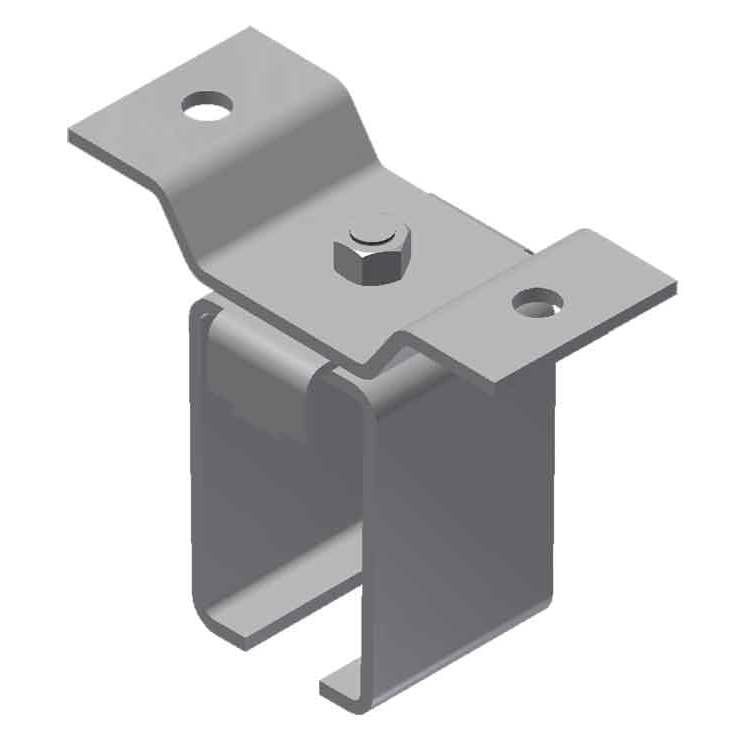

Cross Ear Joint Bracket

US$68.20
EA (1)

Features

Features

Used to Join Two Lengths of Track

Documents & Downloads

Technical Data

Technical Data

Purpose:
Similar to a cross ear center bracket with the exception of the joint clip. The joint clip helps mate two sections of track together forming a single run. Joint brackets nullify the need to weld tracks together. This style of bracket also prevents track creep in multiple-piece track applications.
Used to mount a track system to the underside of a structural I-beam. Spaced on a maximum of 24" centers.
Essential component that gives the track it's strength and prevents the track from spreading and/or failing.

Install Tips

Install Tips

Loosen the nut, raise the clamping clip, slide the ends of the tracks into the bracket and drop the bend ends of the clampling clip into the holes in the top of the tracks. Tighten the nut holding the clamping clip.
