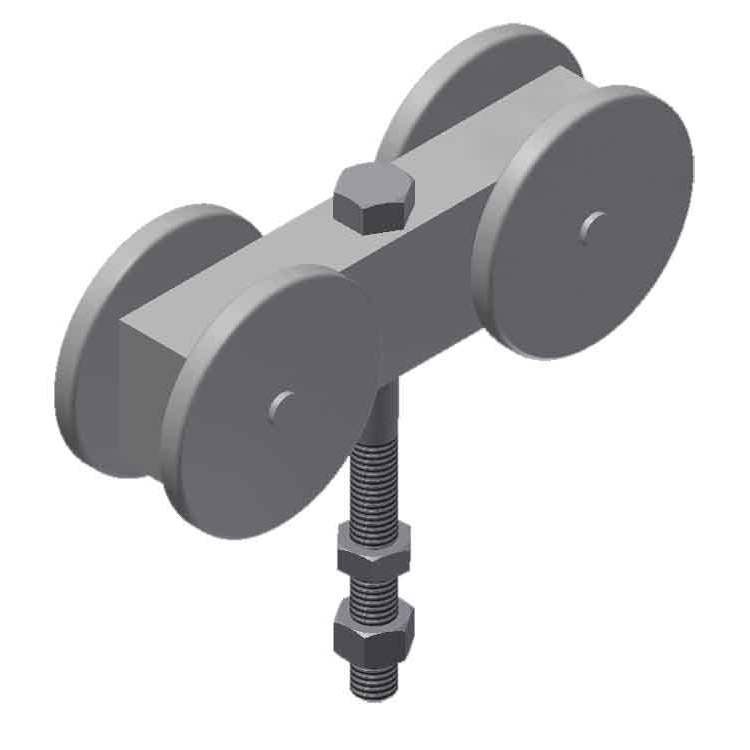

Truck, Ball Bearing, 1/2 Pend.-SS #2b

For manually sliding doors. One pair of trucks per door.

1/2"-13 Stainless Steel Pendant

Sold as a pair (2 ea.)

• .pdf Drawing

Purpose:
NOTE: Only (1) one pair of trucks are to be used per door regardless of the size of the door.  Attaching more than two trucks on a single door can create a fulcrum or "teeter totter" effect causing uneven wear to the trucks and track.

A truck is a wheel assembly with an adjustable bolt called a pendant bolt. The pendant bolt of the truck assembly can be directly attached to the top of a metal door without the use of a top plate, provided sufficient reinforcing has been installed in the top of the metal door. When used with a top plate, a truck can be attached to the top of a wood or other types of doors.

Trucks that use an apron assembly to attach to a door are called hangers or trolleys. The apron component of a hanger assembly comprises of two metal plates that wrap around the top of the door.  Bolts are secured perpendicularly through the door and into these plates.

Function:
For metal doors with sufficient reinforcing in the top of the door to support the door's own weight.

Fasteners Included: (2 ea.) 1/2"-13 Hex Nuts & Jamb Nuts, stainless steel.
