TRUCK, w/ Top Plate (Min. 1-3/8" Dr.)-P

Item: 4.4B

US$188.20
PR (1)

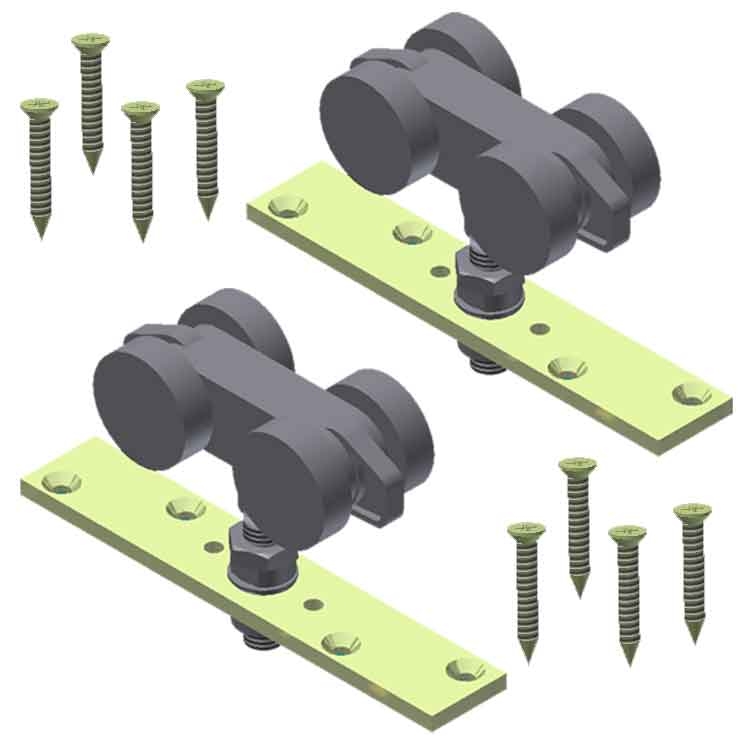

Sold as a pair (2 ea.)

Features

Features

Sold as a pair (2 ea.)

Documents & Downloads

Technical Data

Technical Data

• For door(s) with a minimum thickness of 1-3/8".

Purpose:
Only a single pair of trucks are to be used per door, regardless of the size of the door. Attaching more than two trucks on a single door can create a fulcrum or "teeter totter" effect causing uneven wear to the hangers and track.

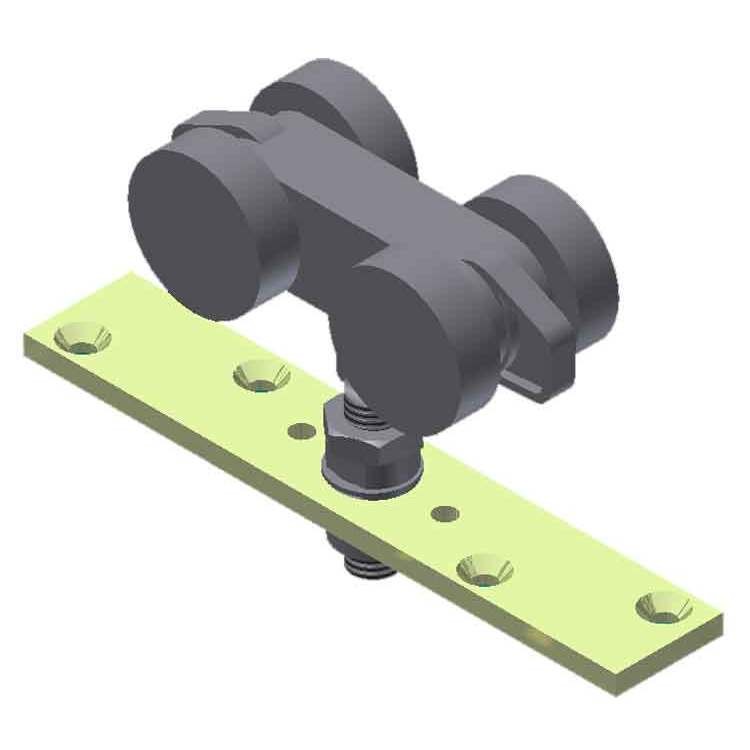

A truck is a wheel assembly with an adjustable bolt called a pendant bolt.

The pendant bolt of the truck assembly can be directly attached to the top of a metal door without the use of a top plate, provided sufficient reinforcing has been installed in the top of the metal door to support it's weight.

When used with a top plate, a truck can be attached to the top of a wood or other types of doors.
