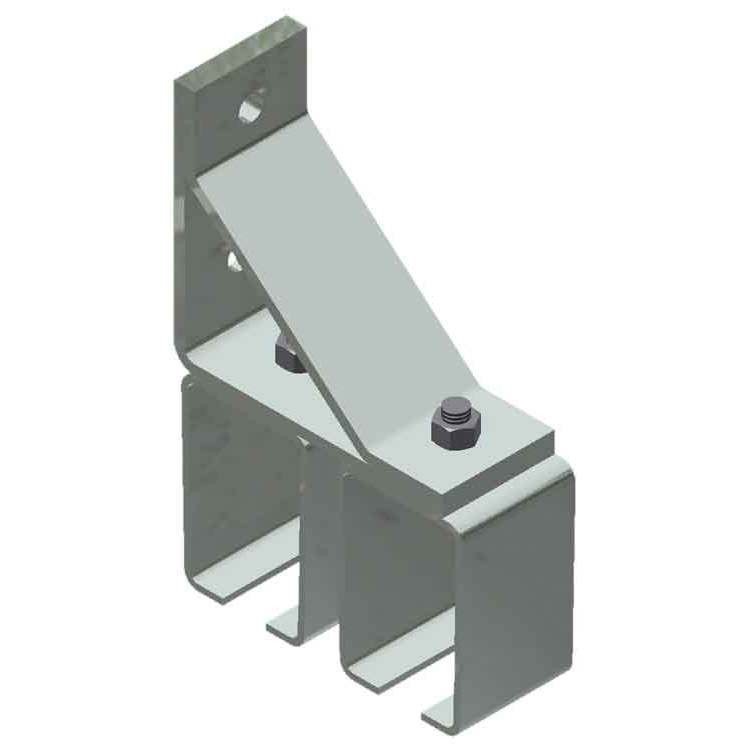

Double Center Bracket

Maximum Bracket Spacing: 30" on Centers

• .pdf Drawing
• 4x22.stp file

Purpose:
Used to mount a parallel running track system to the face of a building or wall. Spaced on a maximum of 30" centers. Essential component that gives the track it's strength and prevents the track from spreading and/or failing.

Function:

• By-passing (parallel sliding doors) applications where one door slides in front of another door, opening one side of the opening at a time.
• Telescoping applications where two doors telescope out to cover a single opening and then telescope back into a reduced stack area. For example a 10' wide opening where a 10' wide door physically would not fit in the stack area, so two smaller door leaves 5' each are used instead.
• Two sets of single sliding or bi-parting doors where one set of doors act as privacy screen(s) and are mounted in front of a the access door(s).

Slide track through brackets. Be sure to mount bracket on factory recommended support intervals. All brackets should be installed level to allow track to be level.
