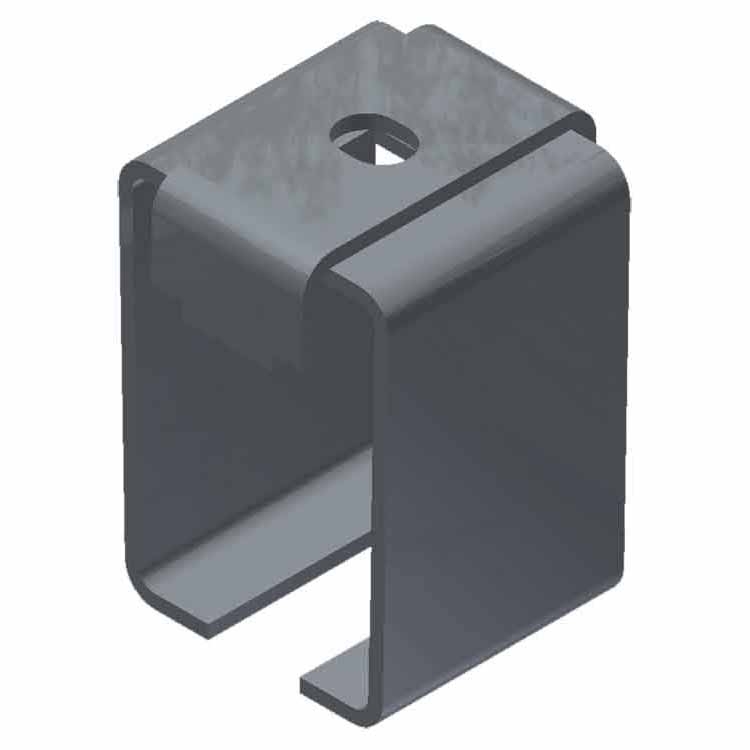

Overhead Joint Bracket

US$15.97
EA (1)

Ordering Notes

Features

Features

Used to Join Two Lengths of Track

Documents & Downloads

Technical Data

Technical Data

Purpose:
To join two pieces of track together to make a single continuous smooth run of track. Prevents horizontal creep of tracks while binding them tightly together against the bottom of the bracket. The Standard Product Warranty requires the use of Track Brackets for all applications. Gives the track stability to prevent it from spreading apart.

Function:
For mounting to the underside of a opening header or support beam.

Install Tips

Install Tips

A drilled clearance hole through the track may be required to mount brackets to the underside of supporting structure.
Allow shim spacing between the bracket and underside of supporting structure . All brackets should be installed level to allow track to be level.
With the bracket not completely secured, raise the clamping clip, slide the ends of the tracks into the bracket and drop the bend ends of the clamping clip into the holes in the top of the tracks. Tighten the fastener holding the bracket and clamping clip to the underside of the supportive beam
