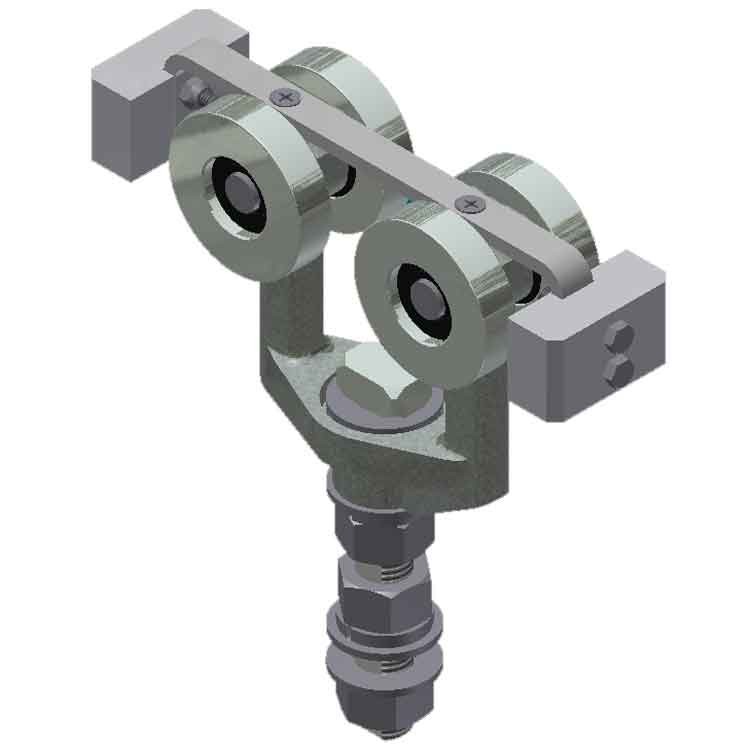

Cantilever Gate Truck, Ball Bearing-Zinc

Sold as a pair (2 ea.)

• .pdf 25B-P18 Drawing
• 0001958.pdf Cantilever Gate Assembly Drawing

Purpose:
For cantilevered supported manually or power operated sliding doors or gates. Larger wheels and guides prevent kick-up. For load capacities reference drawing file.

Only a single pair of trucks are to be used per door.

A truck is a wheel assembly with an adjustable bolt called a pendant bolt.

The pendant bolt of the truck assembly can be directly attached to the top of a metal door without the use of a top plate, provided sufficient reinforcing has been installed in the top of the metal door to support it's weight.

When used with a top plate, a truck can be attached to the top of a wood or other types of doors. Trucks that use an apron assembly to attach to a door are called hangers or trolleys.
