Features
Features

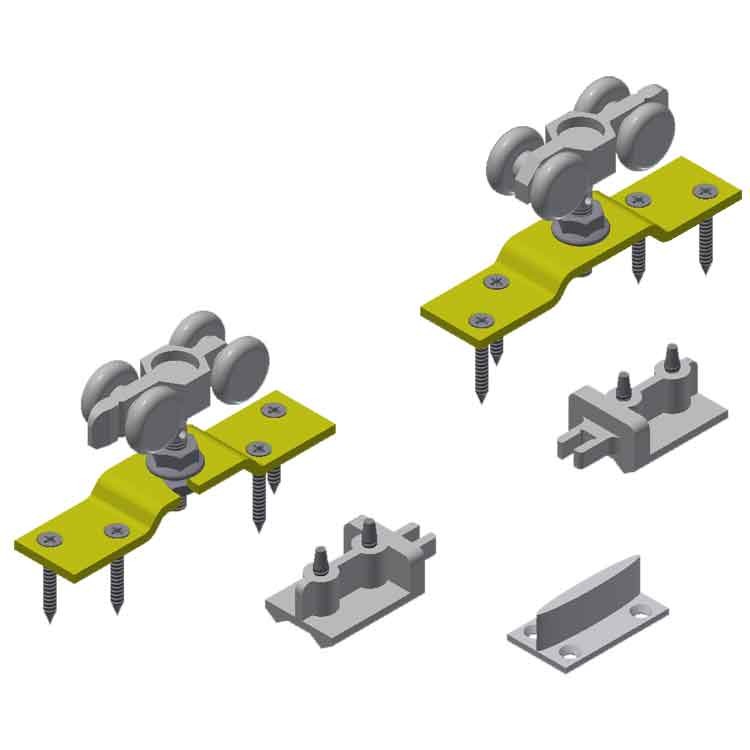

Sold as a pair (2 ea.). Includes concealed stops & 102N Bottom Door Guide.
Documents & Downloads
Documents & Downloads
.pdf DrawingTechnical Data
Technical Data
Function:
For a manually operated light duty sliding door weighing up to 200 lbs.
Fasteners Included:
- (8 ea.) #8 x 1-1/4" Flat Head Phillips Sheet Metal Screw, Zinc for securing top plate to the top of a door.
- Top plates to mount rollers to the door.
- Concealed clip stops that mount inside the track.
- 102N Nylon bottom guide.
Material:
- Trucks: Rubber Coated Steel Wheels with roller bearings, steel body.
- Top plates: Steel.
