Purpose:

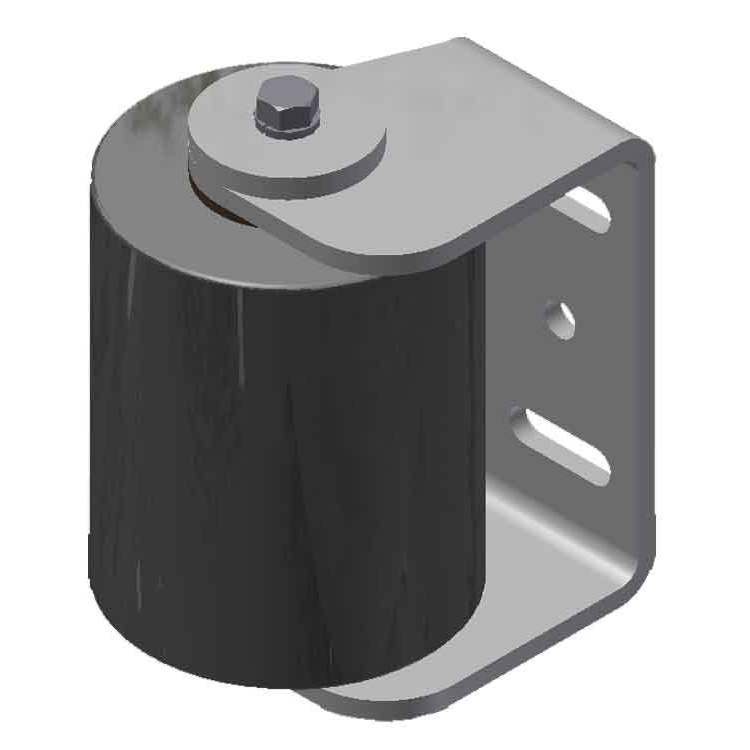

For guiding the top of a small to medium sized gate, no larger than 20'-0" wide, where the gate is supported by bottom rollers. These rollers allow for closer clearances between the supporting posts and the face of the gate.
No Fasteners Included.
