.pdf 740-S DrawingTechnical Data
Technical Data
Function:

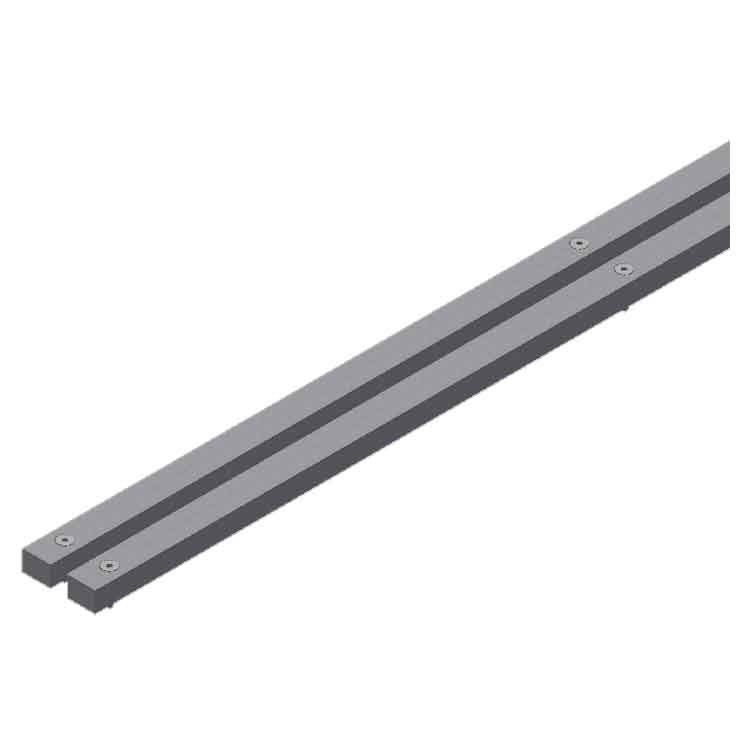

Designed for #CR6-M 6" Bottom Roller, with Male Flange wheel (7,500 lb capacity).
This floor track can be surface mounted on top of the floor or recessed below the floor line and attached to a continuous supporting substructure.
Fasteners Included: (18 ea.) 1/4"-20 x 1-1/4" Flat Head Socket Cap Screw, 18-8 Stainless Steel.
Material: 2 bars of 304 Stainless Steel x 12'-0" Lng.
Finish: #4 Brushed Finish.
Install Tips
Install Tips
Must be installed level.
