740-LSP Leveling Splice Plate-USP (740) Zoom

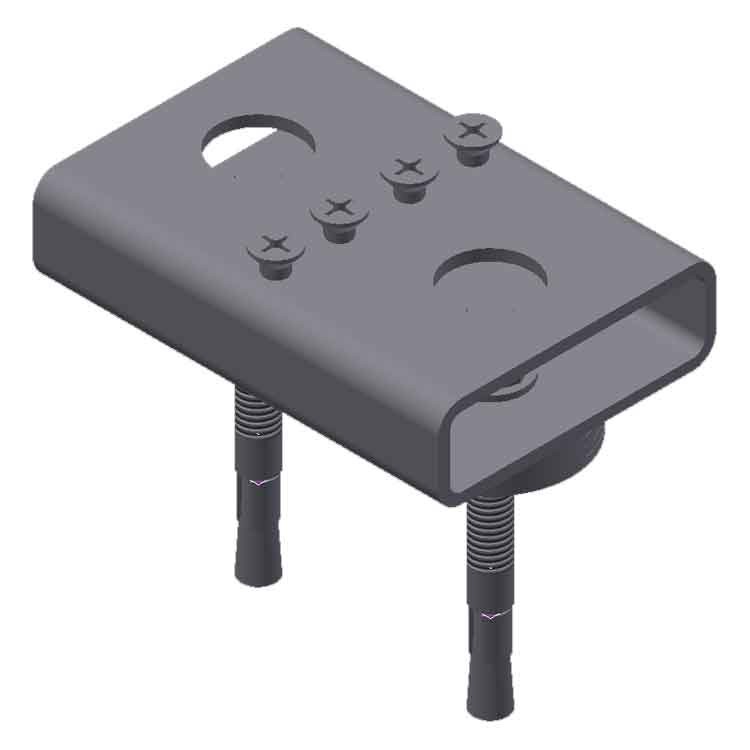

Leveling Splice Plate-USP (740)

Item: 740-LSP

US$19.61
EA (1)

Features

Features

Located at Splice Joints for 740-SS floor track.

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Purpose:
To support and splice together (2) two pieces of #740-SS Floor Track. Leveling Splice plate to be field drilled & tapped to suite, by others.

Fasteners Included:

  • (2 ea.) 3/8" x 3-3/4" Wedge Anchors, Zinc
  • (8 ea.) 5/8" Flat Washer Leveling Shims, Zinc
  • (2 ea.) 5/8" Flat Washer x 0.078 Thick
  • (2 ea.) 5/8" Flat Washer x 0.032 Thick
  • (4 ea.) 1/4"-20 x 3/4" Flat Head Phillips Machine Screw, 18-8 Stainless Steel.
    •



    Install Tips

    Install Tips

    Use 5/8" Flat Washer shims to align leveling plate. Leveling Plate must be installed flat.
