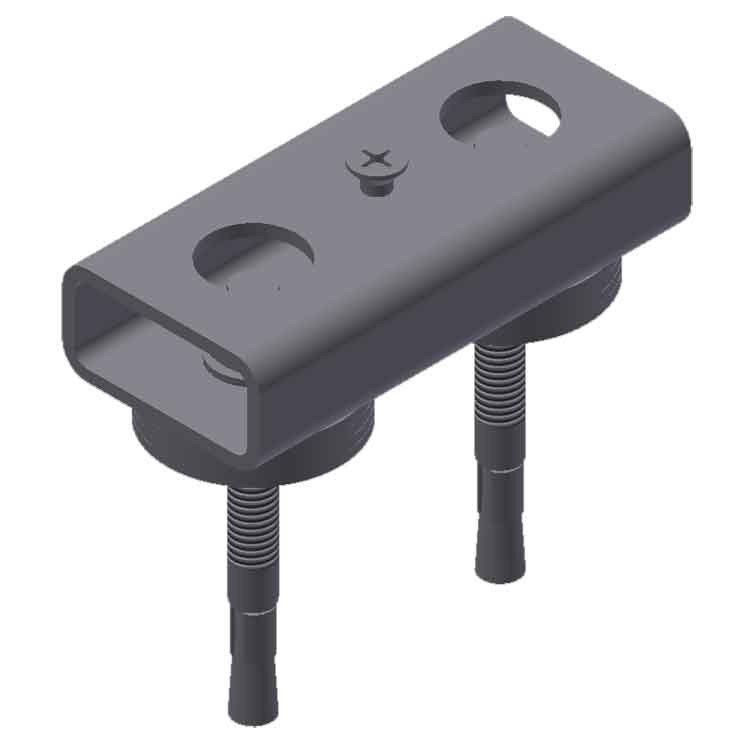

740-L Leveling Plate @ 24"OC-USP (740) Zoom

Leveling Plate @ 24"OC-USP (740)

Item: 740-L

US$19.08
EA (1)

Features

Features

Located 24" On Center.

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Purpose:
To support #740-SS Floor Track. Leveling plate to be field drilled & tapped to suite, by others. Locate on 24" maximum centers.

Fasteners Included:

  • (2 ea.) 3/8" x 3-3/4" Wedge Anchors, Zinc
  • (8 ea.) 5/8" Flat Washer Leveling Shims, Zinc
  • (2 ea.) 5/8" Flat Washer x 0.078 Thick
  • (2 ea.) 5/8" Flat Washer x 0.032 Thick
  • 1/4"-20 x 3/4" Flat Head Phillips Machine Screw, 18-8 Stainless Steel
    •







    Install Tips

    Install Tips

    Use 5/8" Flat Washer shims to align leveling plate. Leveling Plate must be installed flat.
