For use with the #0739.00026 floor guide on sliding, telescoping, and slide-fold door applications.
Documents & Downloads
Documents & Downloads
.pdf Drawing #739P26Technical Data
Technical Data
Purpose:
For use with the #0739.00026 floor guide on sliding, telescoping, and slide-fold door applications. The track can either be mounted on top of the finished floor or recessed below the finish floor line to avoid creating a tripping hazard.
No Fasteners Included.

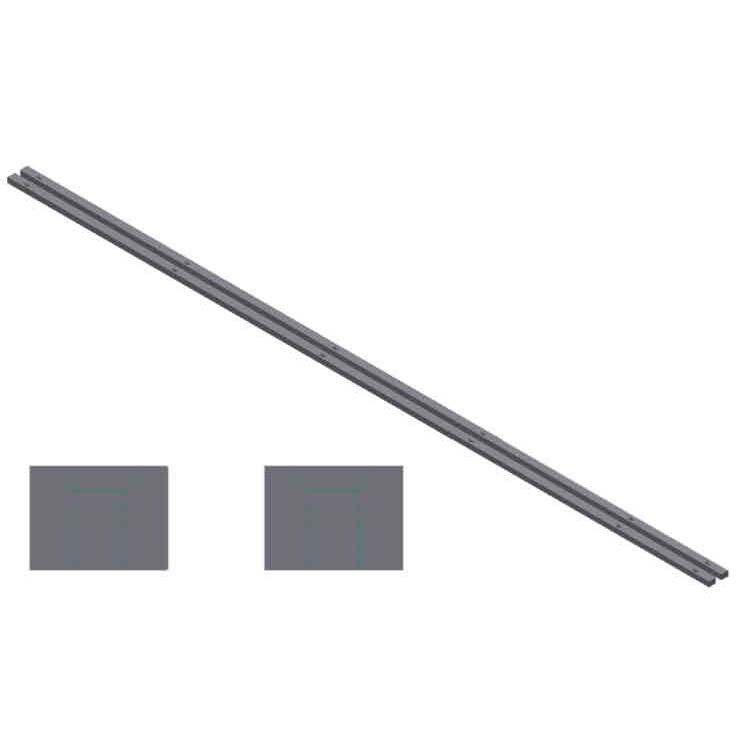

Material: (2 ea.) 3/8" x 1/2" heavy steel bars cut to required length. Drilled and countersunk mounting holes for #8 Flat Head fasteners equally spaced at approximately 10" centers unless specified otherwise.
