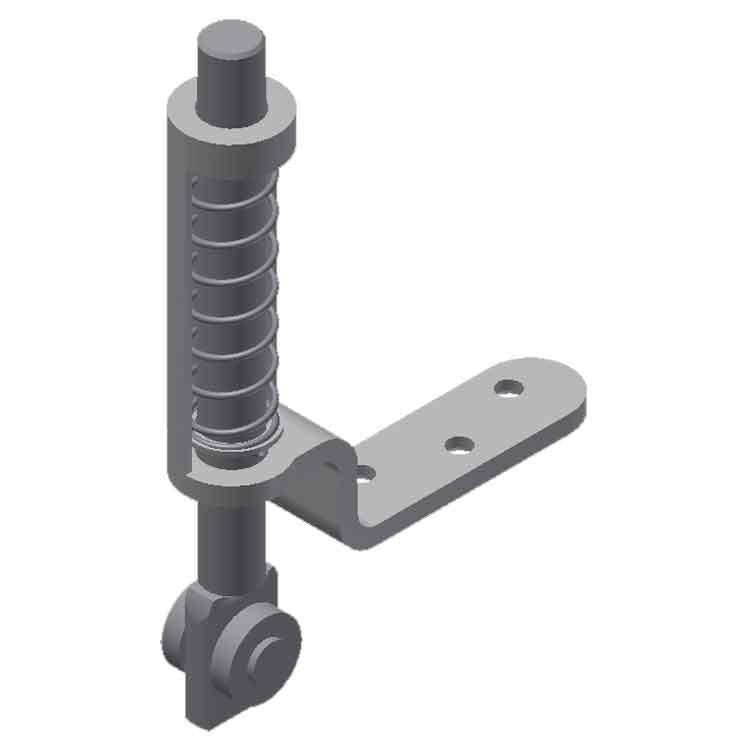

Floor Guide-Ptd.

Item: 0739.00026

US$250.25
EA (1)

Features

Features

For sliding, by-passing, telescoping, and slide-fold door applications.
Minimum Door Thickness: 1-3/8".
(2 ea.) guides per door.

Documents & Downloads

Technical Data

Technical Data

Purpose:
For use with the #739P28 floor guide track on sliding, by-passing, telescoping, and slide-fold door applications.
• Minimum door thickness of 1-3/8".
• Use two (2 ea.) guides per door.

Function:
Rollers of the floor guide are held in contact with the #739P28 floor guide track by light downward spring pressure. This guide also swivels for slide-fold door applications.
• Hardware should be mounted directly in line with the trucks/hangers of the box track hardware above. This will prevent lateral loading on this guide.

Fasteners Included: (3 ea.) #12-14 x 1-1/4" Flat Phillips Head Wood Screw, Zinc.
