203500669.pdf Drawing Technical Data
Technical Data

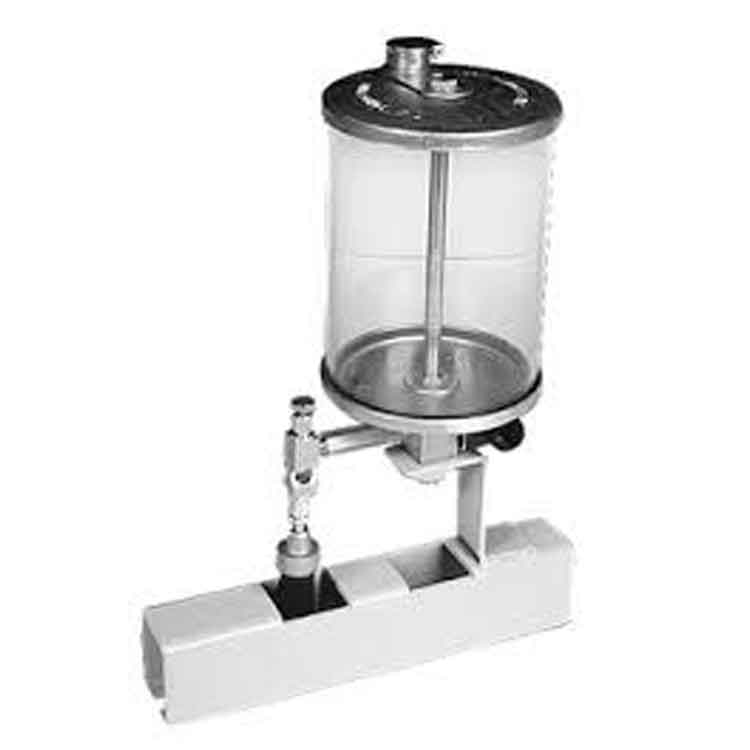

The 2035.00669 Electro Brush Oiler includes a section of conveyor track that is prepared to accept the 0.5-gallon reservoir and brush assembly. The top of the track has an opening that allows the brush to coat the top of the moving chain. An electrical solenoid valve, 120V with an adjusting screw, provides for the regulation of the reservoir oil gravity flow. The solenoid valve can be field wired to release oil when the drive unit is operating, or intermittent release oil can be obtained with additional PLC controls (not included with this assembly).
