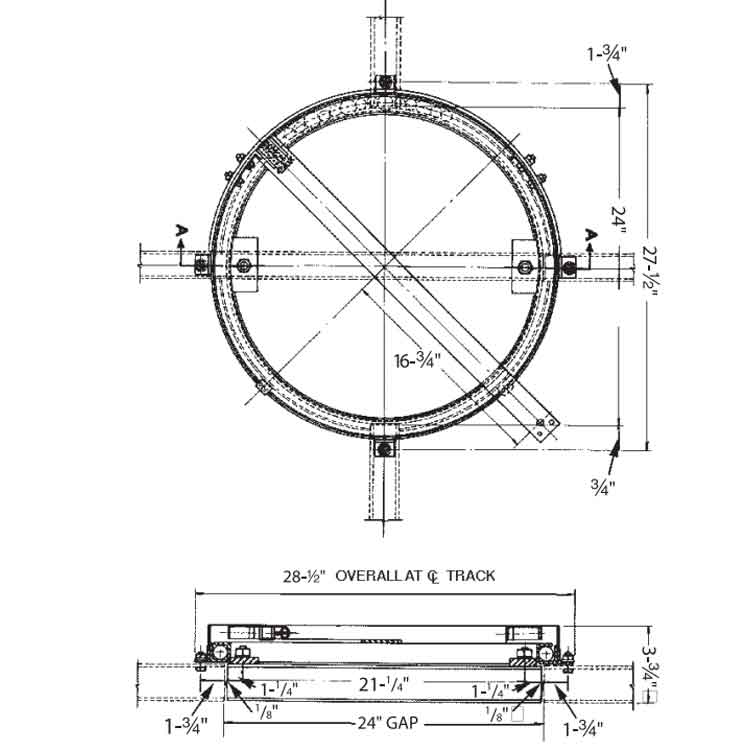

.pdf 2035.00821 DrawingTechnical Data
Technical Data
Manufactured with a standard 24" gap. Maximum capity of 500 lbs. The unit is constructed of steel with the turning section carried on eigh ball bearing wheels. The unit turns 90 degrees and is equippped with plunger type latches which are actuated by a pull chain. The 2035.00825 Throw Control is available to ship the turntable.
