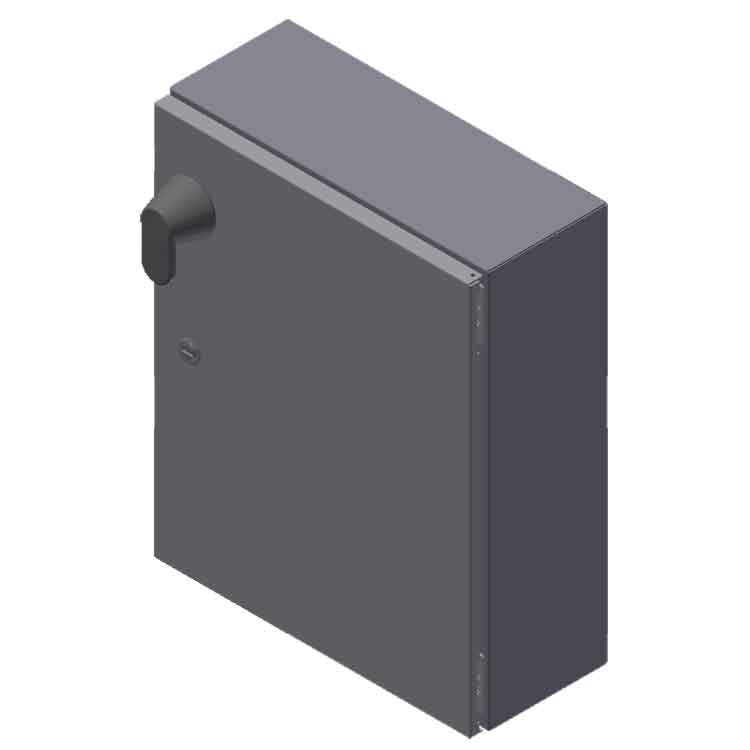

1502 Control Box

• 16x20x6ControlBox.pdf
  Note: For pair of operators Control Box is 24x20x6
• .dwg 2004 Drawing #16x20x6ControlBox

System Controller Options for a 1502 Electric Door Operator

• PLC:
This option is the most flexible when it comes to defining custom/reconfigurable digital circuits since we use a programmable logic controller.

• Open-Momentary Pressure, Timer to Close, Reverse Safety:
A single button is pushed once to begin the open cycle. Then a timer preset to a certain length of time will cause the close cycle to begin once that length of time has expired. During the closing cycle if the safety edge is triggered the door will re-open, the timer will be re-initiated and after it times down the door will attempt to close again.

• Open/Close-Momentary Pressure, Reverse Safety with Run Timer:
A single button is pushed once to begin the open cycle. A single button is pushed to begin the close cycle. During the closing cycle if the safety edge is triggered the door will re-open and stay open until the close button is pushed. This system has a built in run timer to prevent damage to the operator if there is an issue with either the open or close cycle.

Specifications:
Standard Control Box Dimensions: 16" Wide x 20" Tall x 8-3/4" Thick (Note: Size may very depending on application).
