Documents & Downloads
Documents & Downloads

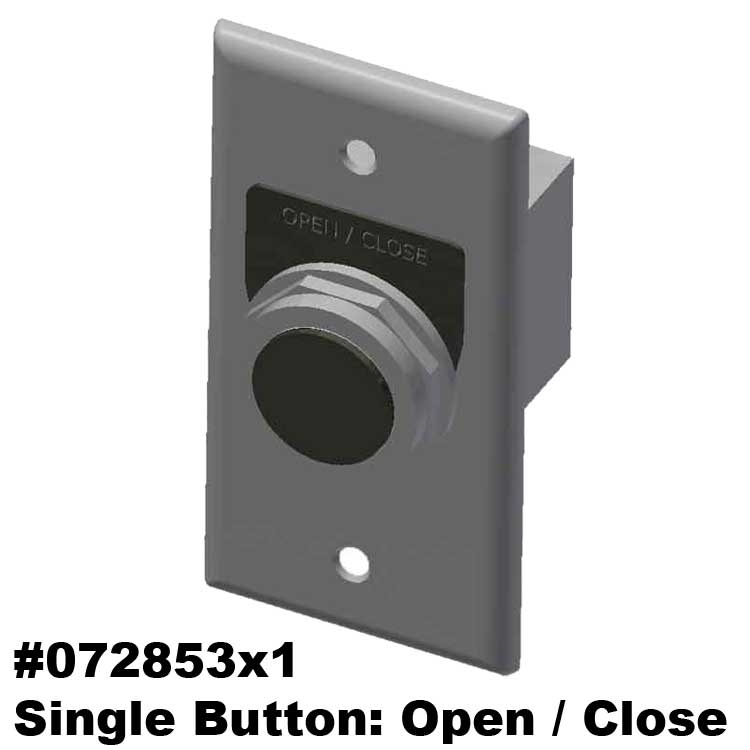

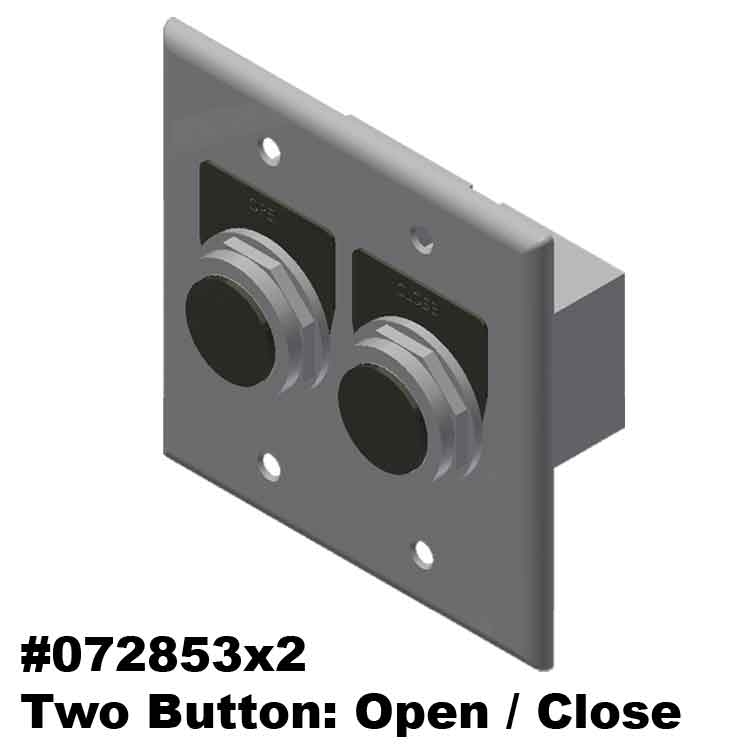

.pdf #072853x1 1 Button: Open/Close Drawing- .pdf #072853x2 2 Button: Open/Close Drawing

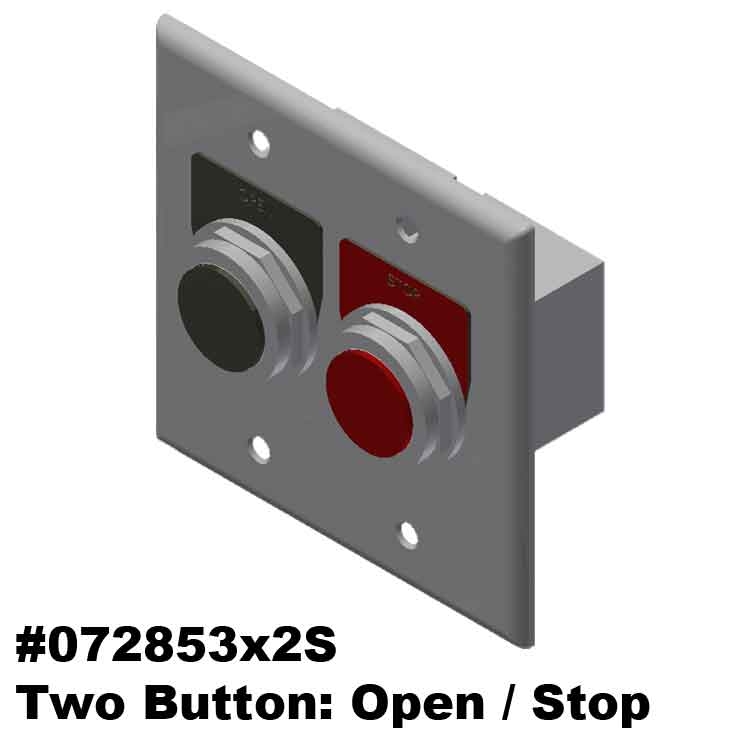

- .pdf #072853x2S 2 Button: Open/Stop Drawing
- .pdf #072853x2OCS 2 Button: Open-Close/Stop Drawing

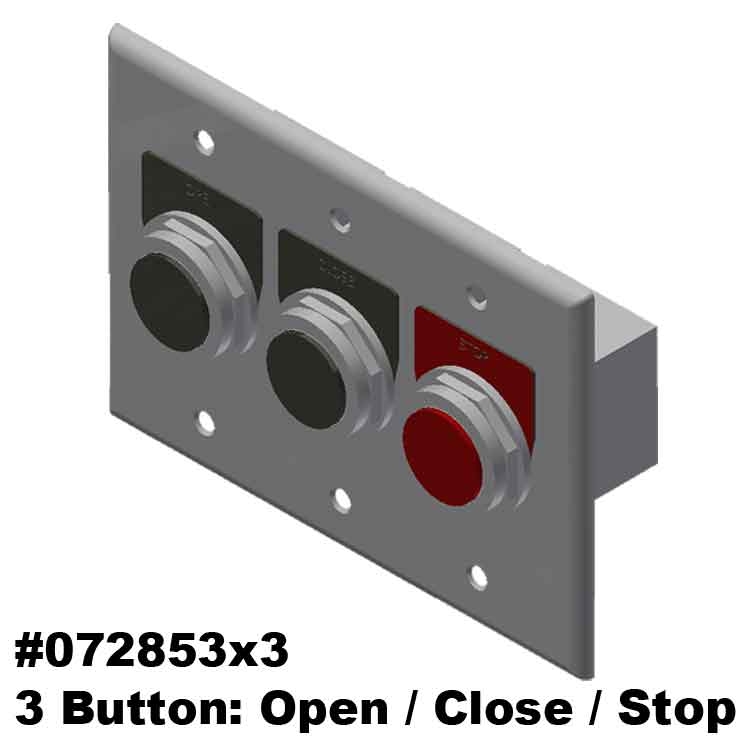

- .pdf #072853x3 3 Button: Open/Close/Stop Drawing
- .pdf #072853x3ES 3 Button: Open/Close/Emergency Stop Drawing

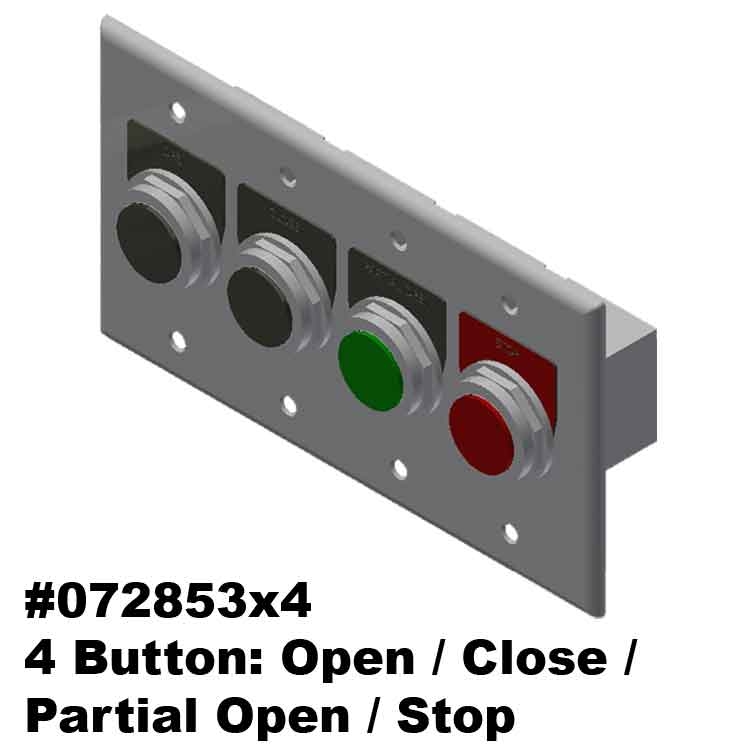

- .pdf #072853x4 4 Button: Open/Close/Partial Open/Stop Drawing

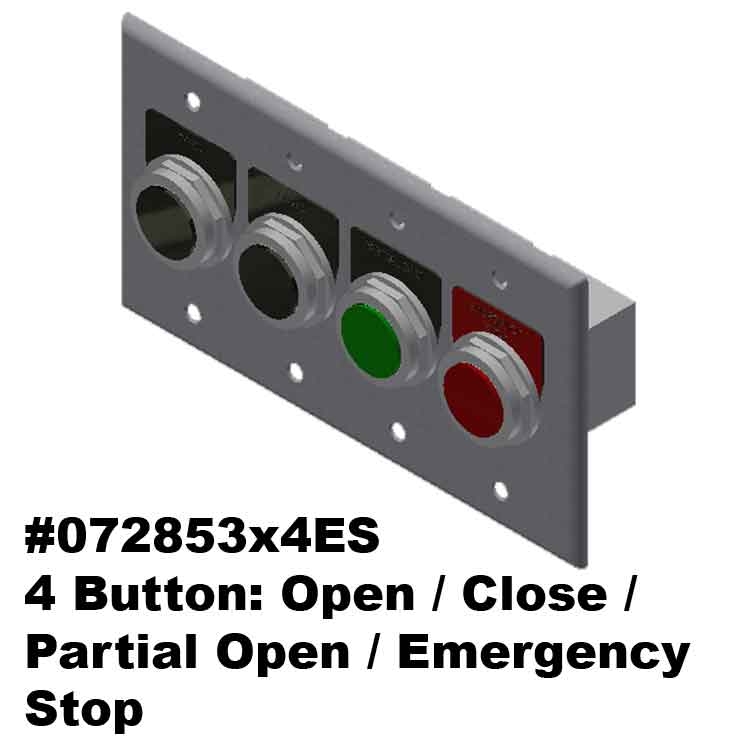

- .pdf #072853x4ES 4 Button: Open/Close/Partial Open/Emergency Stop Drawing
Technical Data
Technical Data
All Buttons are configured as indicated unless specified otherwise:
• BLACK Open Button: Normally Open Contact
• BLACK Closed Button: Normally Open Contact
• GREEN Partial Open Button: Normally Open Contact
• RED Stop/Emergency Stop Button: Normally Open and Normally Closed Contacts
Electrical Box Sizes
- 2 Button: 2 Gang New Work Standard Deep Square Box 4x4x2-3/16
- 3 Button: 3 Gang New Work Standard Deep Square Box 4x6x2-3/16
- 4 Button: 4 Gang New Work Standard Deep Square Box 4x8x2-3/16
