43H Standard Flat Track Sliding Door Hardware Kit Zoom

43H Standard Flat Track Sliding Door Hardware Kit

US$309.52
Hot Dipped Galvanized   304 Stainless Steel - #4 Brushed Finish   Flat Black Painted   Hammer Bronze Painted   Grounded Steel with Clear Coat Painted
LT (1)
Clear All

Indicate the following in the comment field, if known:
(reference the drawings under the documents/downloads tab)

  • Finished Opening Width:
  • Finished Door Width:
  • Door Thickness:
  • Edge of Door to Centerline of Hanger:
  • Projection of Materials beyond Wall Blocking:
  • Factory or Field Drill Track Mounting Holes:

Items made to order. Typical 2 week lead time from approved shop drawings.

Flat Track Quote Request
Click Here to Request a Customized Quotation on a Complete Hardware System by our sales team

Features

Features

400 lb Door Weight Capacity

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Flat Track Project Images

Purpose:
For sliding wood or glass doors where each door does not exceed 400 lbs in weight.

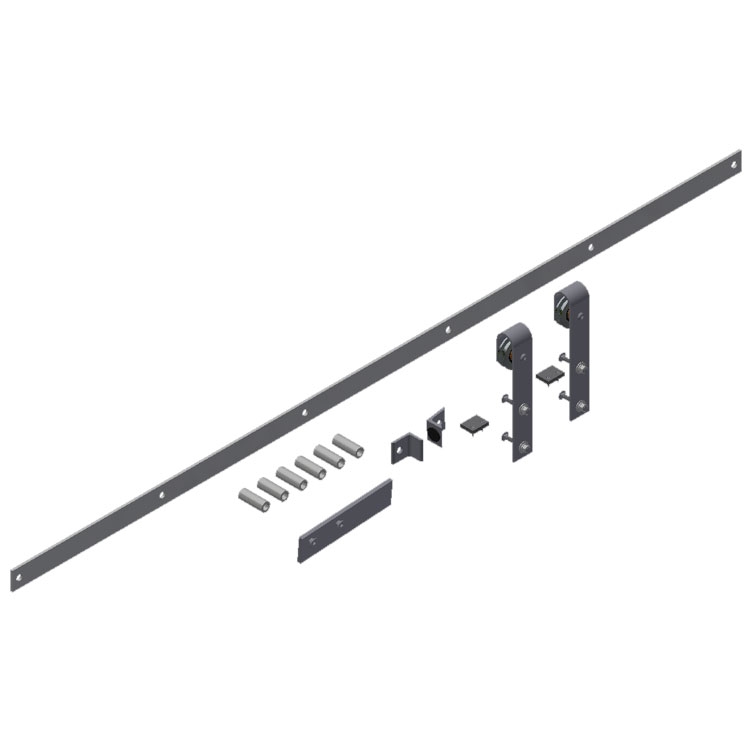

Hardware Included:

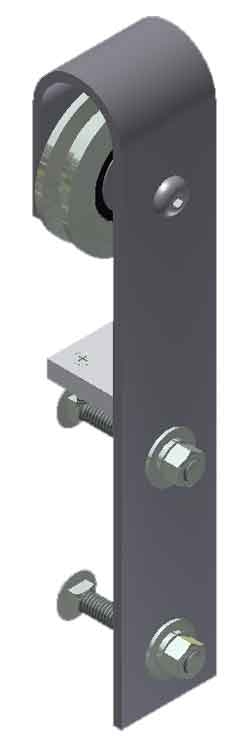

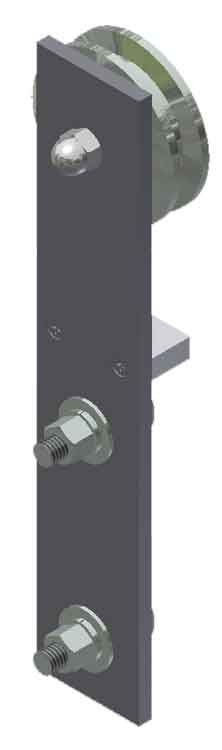

  • (1 Pair)43H Standard Hangers for each door.
  • (1 Lot) Carriage Bolt Fasteners to Attach Hanger to door.
  • (1 Pair) Anti-jump blocks w/ screws.
  • (2 Each) Track stops for Each Door.
  • (1 set) Wallspacers: custom cut to length for your application. Used to mount the track to the wall at 16" centers. Note: Fasteners to attach to the wall are extra. See 1/2 Lag Screws.
  • Custom Cut Length of Track. Track can be factory drilled with tracking mounting holes evenly spaced or per your specification. Note:For track lengths over 8'6" long splice plates will be added so material can ship via UPS.
  • (1 Set) Custom Installation Drawings for your Specific Application.
