Light Curtain Package, 32' Max Wide Opening

Item: PE-M114

US$1,032.00
EA (1)

Ordering Notes

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

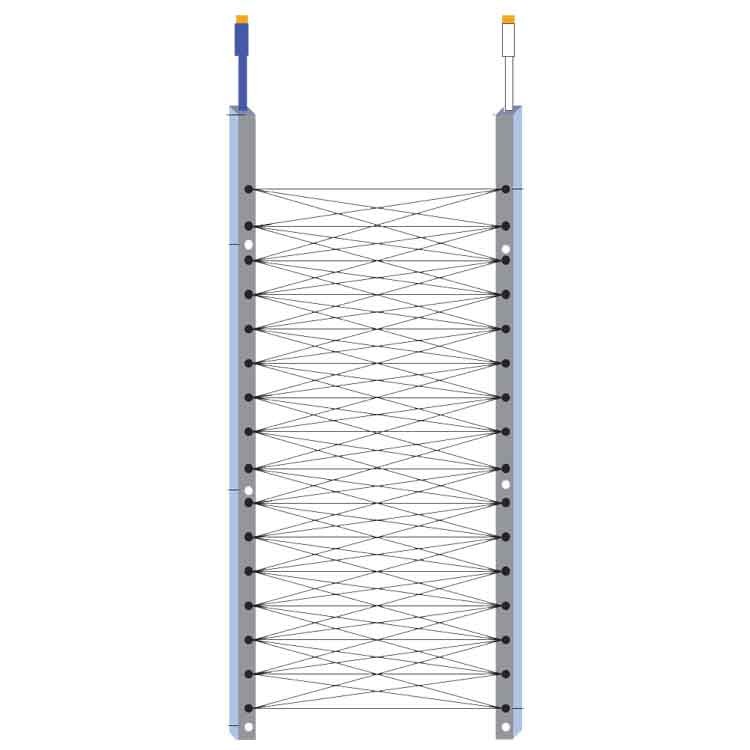

A safety device that is a curtain of light comprised of 114 invisible beams that monitor the opening. When the beams are interrupted, the door is signaled to reverse.

General Specifications:

  • Maximum Opening Width: 32 ft.
  • Protection Beam Height: 71 inches.
  • Minimum Object Size Detection: 3.07 inches.
  • Maximum Ambient Light: > 100,000 Lux (Lumen per Sq. Meter)
  • Supply Voltage: 240 VAC / DC
  • Power Consumption: 150mA
  • Response Time Output: 75 ms
  • Temperature Range: -4 F to +150 F.
  • Trasmitter/Receiver Enclosure Ratings: Nema 4
  • Control Unit Enclosure Rating: Nema 3
  • Sensor Dimensions: .5 in. (W) x .63 in. (D) x 74.8 in. (H)
  • Control Unit Dimensions: 7.9 in. x 5 in. x 1.77 in.
  • Package Includes:

  • Transmitter unit (White) with 16 ft cable.
  • Receiver Unit (Blue) with 16 ft cable.
  • Controller with Enclosure. Mount controller as close to transmitter unit as possible.
  • *For doors larger than 96 sq. ft add 10 ft extension cable

    Additional Notes:
    Mount controller as close to transmitter unit as possible. No greater than 32 feet.
