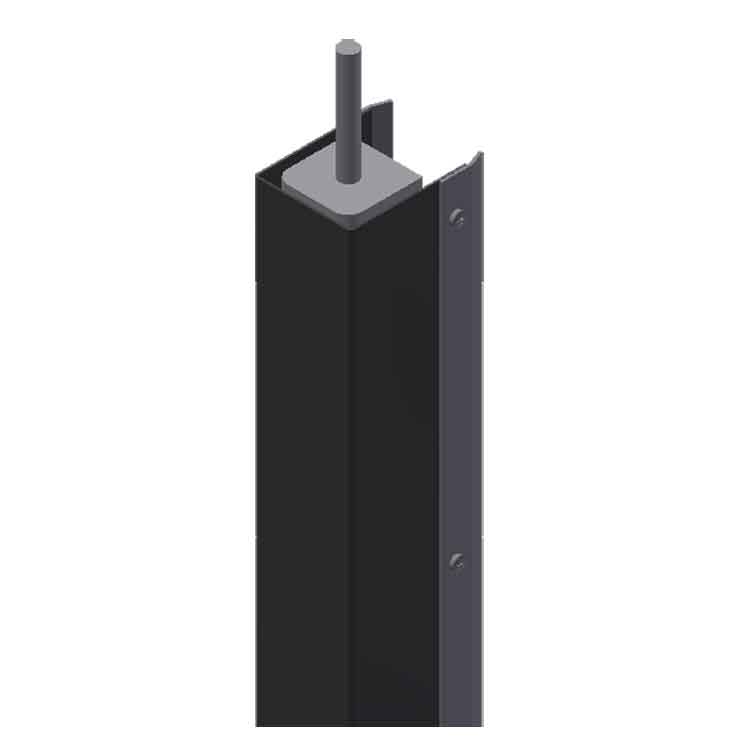

M1-M2 Safety Edge x 7', Non-Monitored, End, 2' Leadin

Item: M1&M2

US$451.50
EA (1)

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Purpose:
A safety strip that acts both as a safety edge and a weather seal. The edge is jacked in a high tear-strength, vinyl-coated nylon fabric that has been hermetically sealed to form a weatherproof casing over a foam rubber core. This core creates a flexible enclosure for the electrical contact strips. These contact strips are a continuous laminate of aluminum foil bonded to a cloth insulator. The construction results in an assembly that is both flexible and positive in action.

Material:
The safety edge is supplied with a 1/16" thick Cloth Reinforced Neoprene Astragal Weatherstrip, galvanized steel Weatherstrip Retainers, and #10-24x3/4" Pan Head Phillips Type-F screws.

Accessories:
