Function:

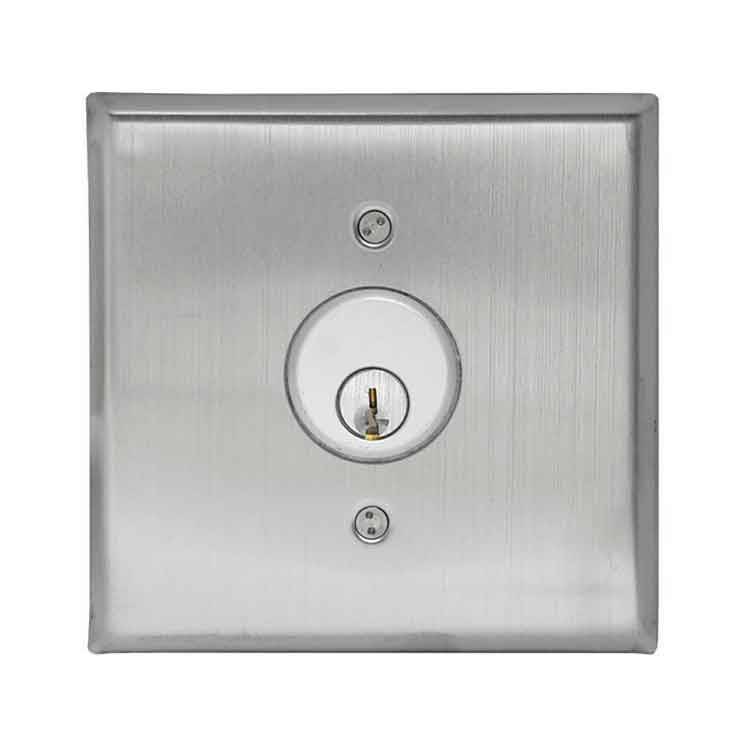

A heavy duty momentary keyswitch (2 SPST): Turn one direction and hold to open, release it springs back to center to stop. Turn key the other direction and hold to close. Wiring is made simple with a plugable wiring harness.
Specifications:
- Operates with standard 1" x 1-1/4" Mortised Cylinder w. A/R Tailpiece.
- Cylinder is sold separately.
- Adjustable mounting holes help plumb and square keyswitch.
- Optional LED indicators available.
- Radio control versions available.
- Mounts to a Single-gang or Double-gang box.
