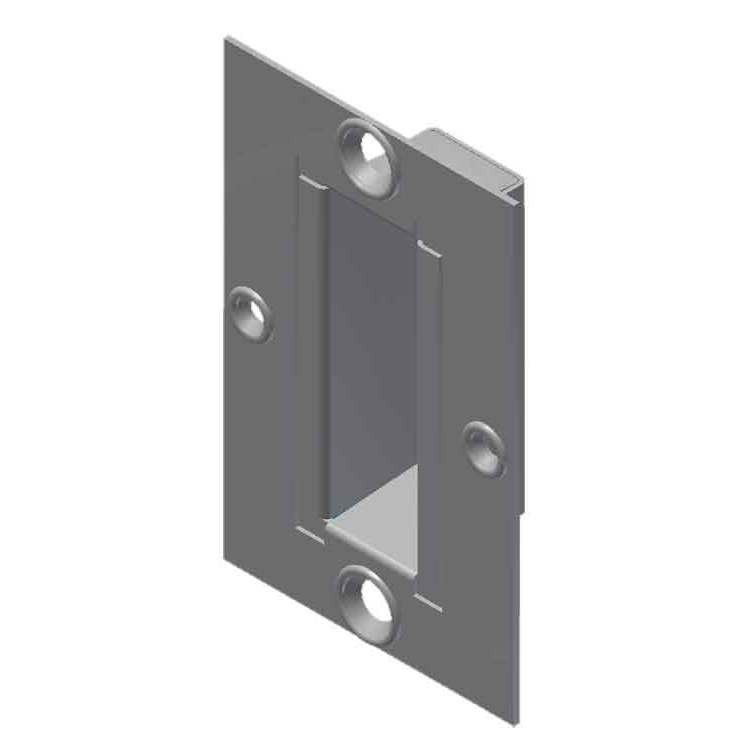

7" Flush Pull, Standard Duty

US$26.87
EA (1)

Ordering Notes

Features

Features

Doors OVER 1-3/4" Thick.

Mounting holes align with align with 71P2 Bow Handle.

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Purpose:
An industrial standard duty flush pull handle whose bolt holes register with the 71P2 bow handle.
• For Doors over 1-3/4" thick.
• Requires 1-11/16" deep mortise.

Fasteners Included:
• (2 ea.) #24 x 1-1/2" Flat Phillips Head Wood Screw, Zinc.
• (2 ea.) #12 x 1-1/4" Flat Phillips Head Wood Screw, Zinc.

Material: 13 Ga. Stamped Steel
