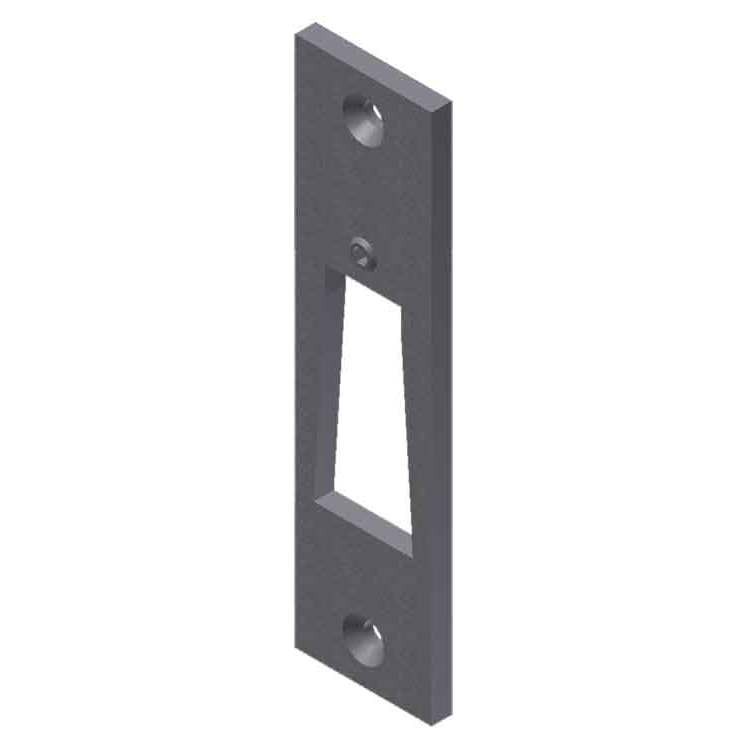

1850 Strike Plate, SLIDING-SS #4 SCW

Adjustable Strike Plate for 1850 Lock

• .pdf Drawing

Purpose:
Adjustable strike plate for the #1850 lock by reducing the gap between the strike plate and the lock. Excellent for applications where a sliding door needs to tightly butt up to a jamb or other door.
• Heavier duty strike than the #4001 series strike box.

Installation Notes:
1) Remove Set Screw.
2) Apply blue lock-tite to threads of set screw.
3) Insert and adjust set screw for proper clearance between the door and strike plate.

Fasteners Included: (2 ea.) #10-12 x 1-1/4" Flat Head Phillips Sheet Metal Screw, 18-8 Stainless Steel.
1/4"-20 x 3/8" Set Screw, Stainless Steel.

Material: #304 Stainless Steel with #4 Brushed Finish.
