Features
Features

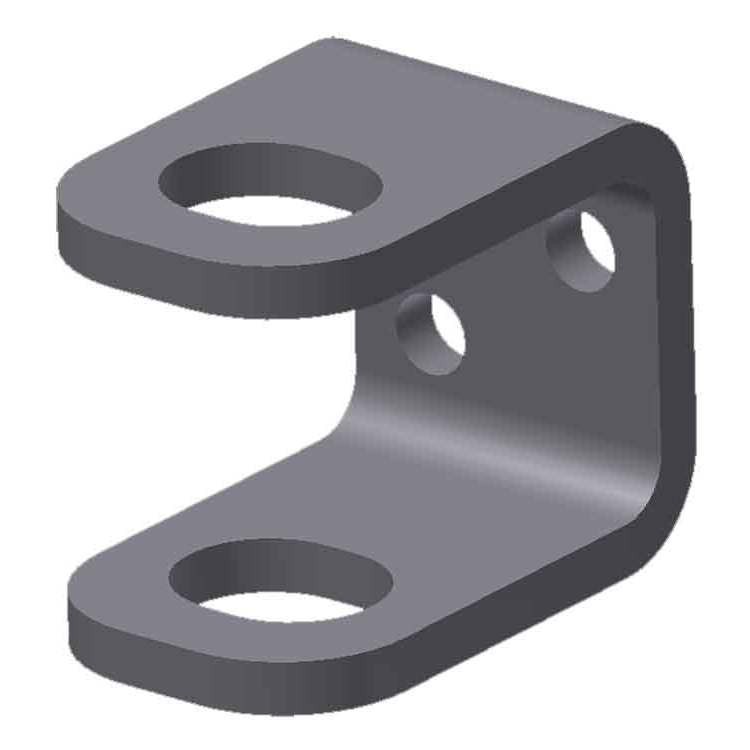

Used with either #524P21 or #524P23 cane bolt, provides a means of securing the cane bolt in the down/locked position.
Documents & Downloads
Documents & Downloads
.pdf Drawing #0524PLTechnical Data
Technical Data
Purpose:
Used with either #524P21 or #524P23 cane bolt, provides a means of securing the cane bolt in the down/locked position.
Fasteners Included:
• (2 ea.) #14 x 1-1/4" Pan Head Phillips Sheet Metal Screws.
• Padlock to be supplied by others. Padlock specification requirements are Maximum Shackle Diameter: 1/2", Minimum Vertical Clear: 1-3/4", Minimum Horizontal Clear: 1".
