Features
Features
Be Sure to Order (2 ea) back plates per 9040 hinge
Documents & Downloads
Documents & Downloads
.pdf DrawingTechnical Data
Technical Data
Purpose:

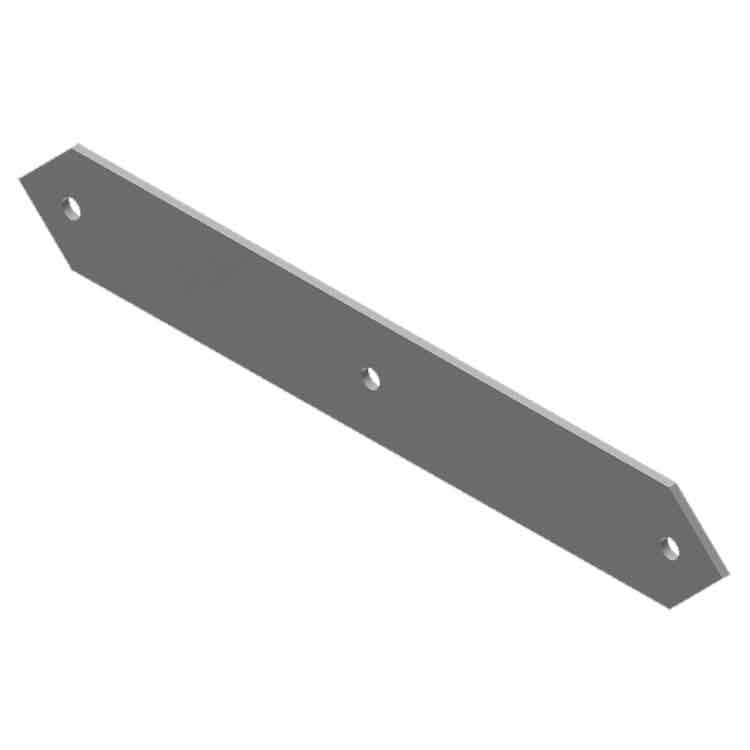

(2 ea.) Back platers required per #9040 strap hinge. Use back plates when through bolting strap hinges to a non-reinforced door, such as a hollow metal, tubular steel framed, mineral core, or corrugated, etc.
Function:
The back plate distributes the clamping force of the fasteners over a larger surface area thus preventing damage to the face of the door.
No Fasteners Included.
