9035-P241 Back Plate 19" .dwg 2004 DrawingTechnical Data
Technical Data
Purpose:

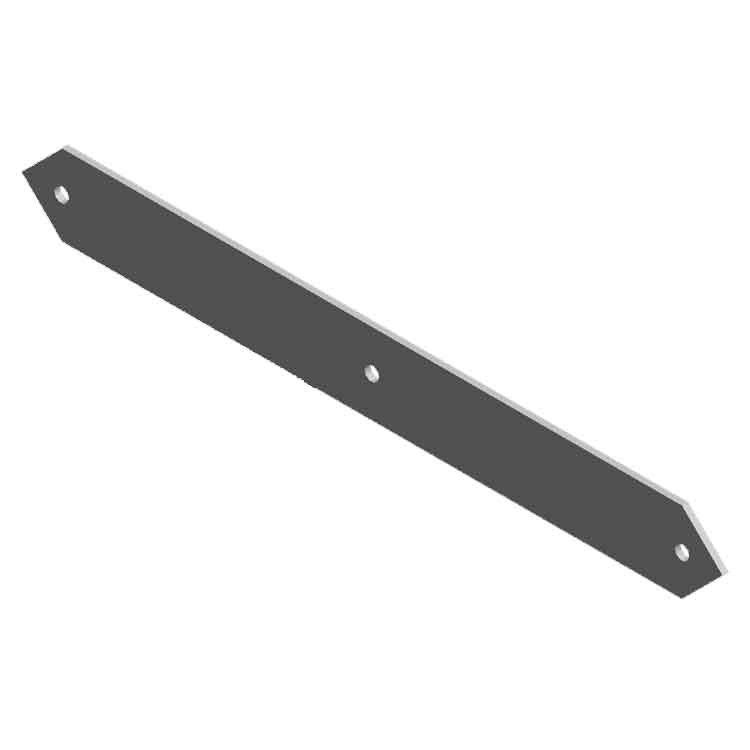

Use back plates when through bolting strap hinges to a non-reinforced door, such as a hollow metal, tubular steel framed, mineral core, or corrugated, etc.
Function:
The back plate distributes the clamping force of the fasteners over a larger surface area thus preventing damage to the face of the door.
No Fasteners Included.
