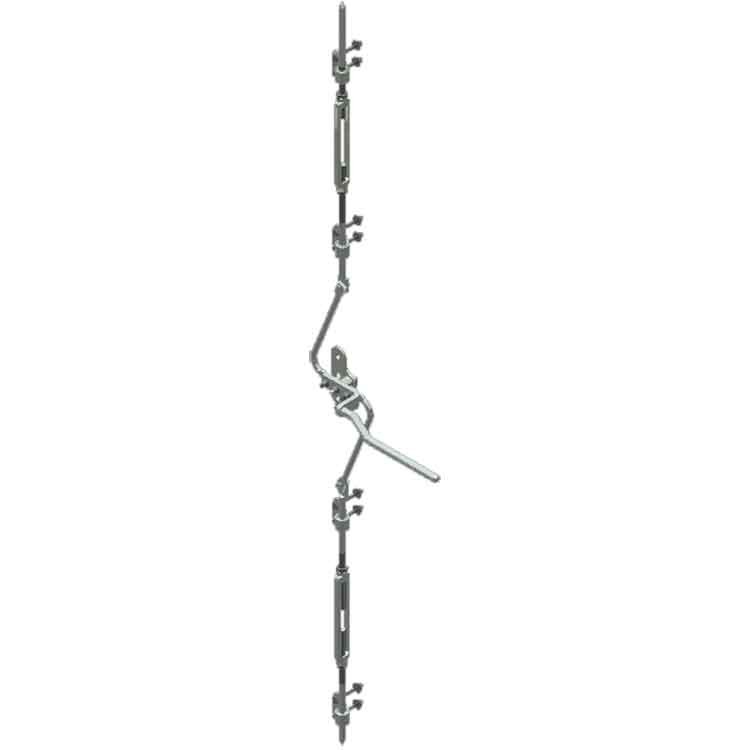

Heavy Duty Cremone Bolt

• 1028P310.pdf Drawing

Purpose:
For securing medium sized swing or slide-fold doors at the top and bottom with the movement of one lever handle. Connection of the rods to the lever handle is made with offset arms. The top and bottom bolts can only be retracted by movement of the lever handle. The amount of throw for top and bottoms bolts is 2-1/2". For applications that require handles on both sides of the door, the Auxiliary Handle Package is available. This Auxiliary Handle Package is designed for doors 1-3/4" to 3-1/4" thick.

Fasteners Included:

• 1/2"-13 x 3-1/2" Hex Head Bolts, Zinc with Flat Washer and Nut for securing cremone bolt guides to door.
• Includes top and bottom keepers.
