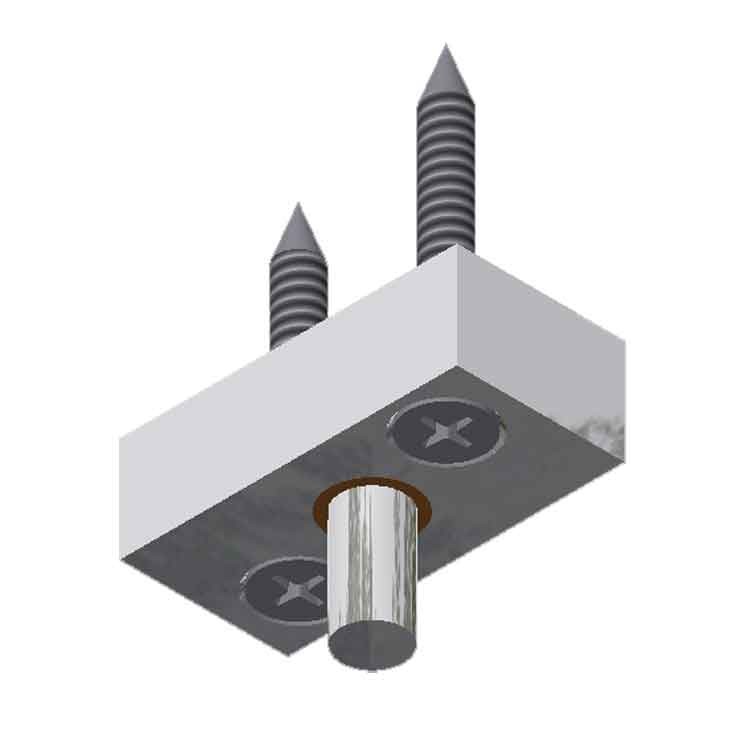

Bottom Guide Pin Assembly-Zinc

Item: GP-375

US$38.16
EA (1)

Features

Features

Minimum door thickness: 2"

Two bottom guide pin assemblies per each sliding door. For slide-folding, one pin assembly is required per door.

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Purpose:
For light duty slide-fold door systems and light duty continuous bottom guide door applications, such as bi-passing doors or doors on the same track.

Function:
The GP-375 bottom guide pin assembly is designed to roll inside #CRC75 bottom guide channel (CRC75 BRONZE Bottom Guide Channel is recommended).

Fasteners Included: (2 ea.) #14 x 2" Flat Head Phillips Sheet Metal Screws, Zinc.
