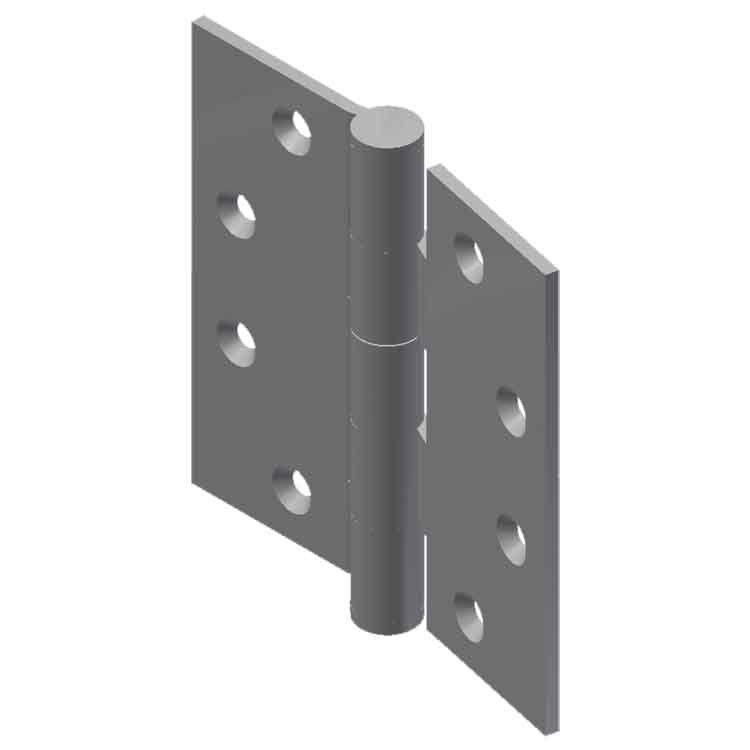

4-1/2" x 4-1/2" Full Mortise Butt Hinge

US$18.32
EA (1)

Ordering Notes

  • > Additional Finishes
  • > Round Corner Hinges
  • > Additonal Hinge Sizes
  • > Non-Removable Pin



All available upon request.

Features

Features

Commercial Grade Full Mortise Butt Hinge

Documents & Downloads

Technical Data

Technical Data

Purpose:
For hinging two doors together for medium duty bi-folding door applications. Can also be used for standard swing doors.

Fasteners Included: (8 ea.) #12" x 1" Flat Head Phillips Sheet Metal Screws, (For Wood Doors) and (8 ea.) #12-24 x 1/2" Undercut Flat Head Phillips Type-F Screws, (For Metal Doors).

Specifications:
200 lb Thrust Capacity

Number of Hinges per Door Guidelines:
Based on the height of the door the following are general guidelines for selecting the proper number of hinges.

Door Height (Feet)
# of Hinges
Up to 7'-6"
3
7'-6" to 10'-0"
4

For additional technical data see 45BH Hinge General Information.pdf
