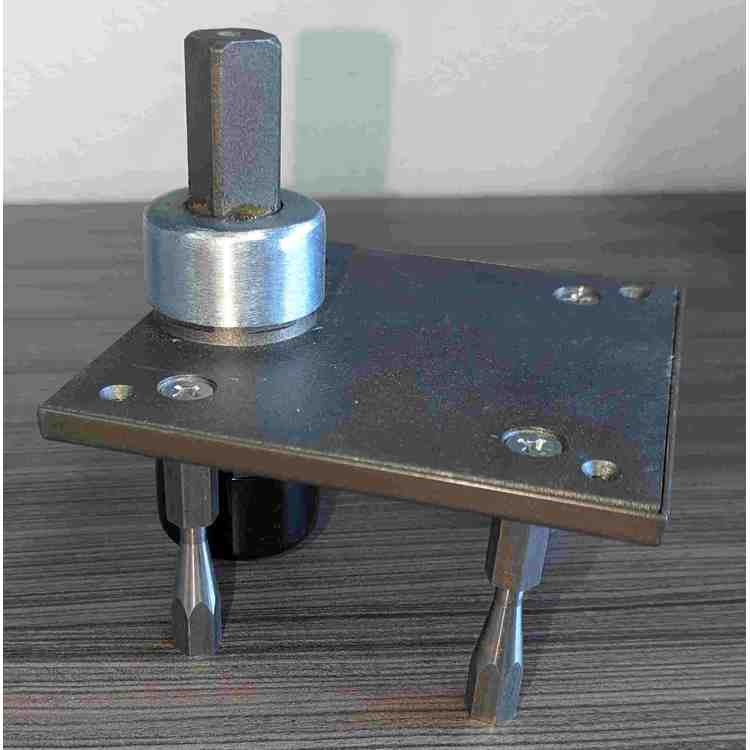

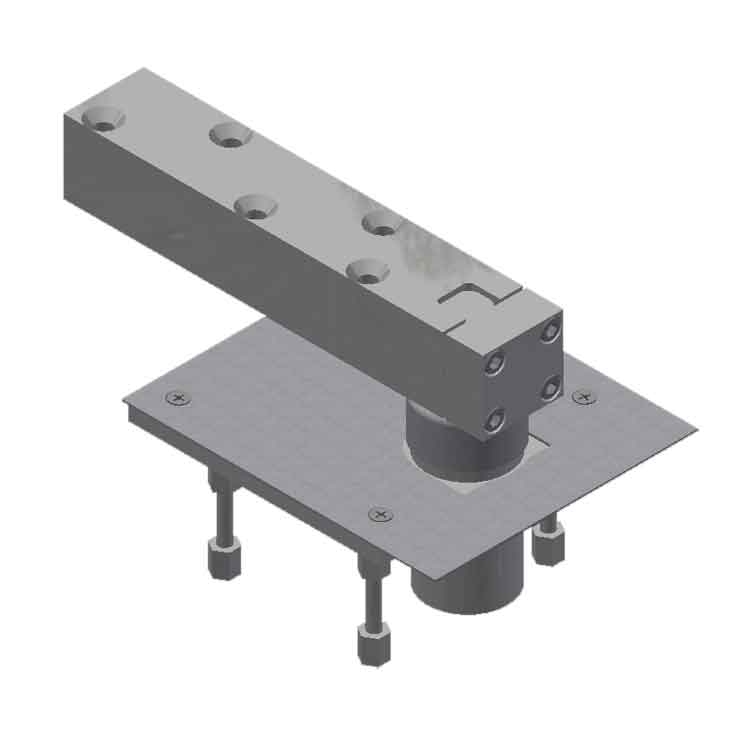

Heavy Duty Bottom Pivot Set, End Mount Zoom

Heavy Duty Bottom Pivot Set, End Mount

US$2,057.12
EA (1)
Clear All

Documents & Downloads

Documents & Downloads

Technical Data

Technical Data

Installation Instructions:
A.1) For FLOOR PLATE APPLICATION: Cement case is set 1/8" below floor level.
A.2) For THRESHOLD APPLICATION: Cement Case is set flush with floor.
B) Set Cement case in floor and block in position.
C) Case should be parallel with center line of door.
D) CEMENT CASE SHOULD BE LEVEL.
E) Grout in cement case with closer. Cement should not get between closer and case.
